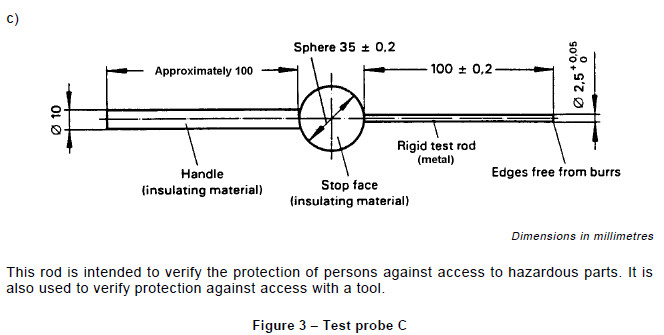

IEC61032 Test Finger Probe Figure 3 Test Probe C With 2.5mm Diameter Rod

Standard:

IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 3 test probe C.

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP3X

IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’

Application:

This rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool.

Access probes of IEC 60529 (IP code) to verify protection of persons against access to hazardous live parts or hazardous mechanical parts

Feature:

Can be used with an electrical indicator for anti-electric shock test.

A hole (M6) can be made at the end of the handle for connection with a push-pull gauge. The model with ‘T’ means that this model is with force.

Parameter:
