Brand Name : | HeJin |
Model Number : | HT-I14 |
Certification : | calibration certificate (cost additional) |
Price : | Negotiatable |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 sets / per month |
Delivery Time : | 3 days |

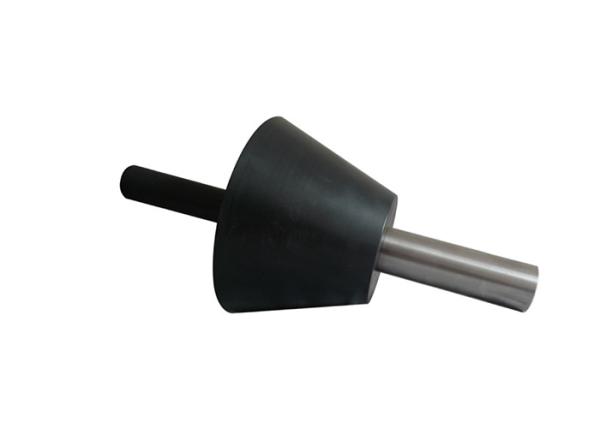

IEC61032 Test Finger Probe Food Waste Probe 31 With 150mm Length
Standard:
IEC61032 Protection of persons and equipment by enclosures - Probes for verification figure 14 test probe 31.
Application:
This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.
Test sample:
Easily accessible enclosure live parts or mechanical parts. Test Finger Probe
Feature:
Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)
Parameters:
Name/Model | Food waste probe 31 / HT-I14 |
Probe diameter | Ф25±0.2 |
The length of the metal probe | 80±0.2 Test Finger Probe |
Tip diameter of the cone | Ф60±0.2 |
End diameter of the cone | Ф110±0.2 |
Probe total length | 150±0.2 |
![]() |
