Brand Name : | HeJin |
Model Number : | SH-7 |
Certification : | calibration certificate (cost additional) |
Price : | Negotiatable |
Payment Terms : | L/C, T/T |
Supply Ability : | 10 set /month |
Delivery Time : | 30 days |

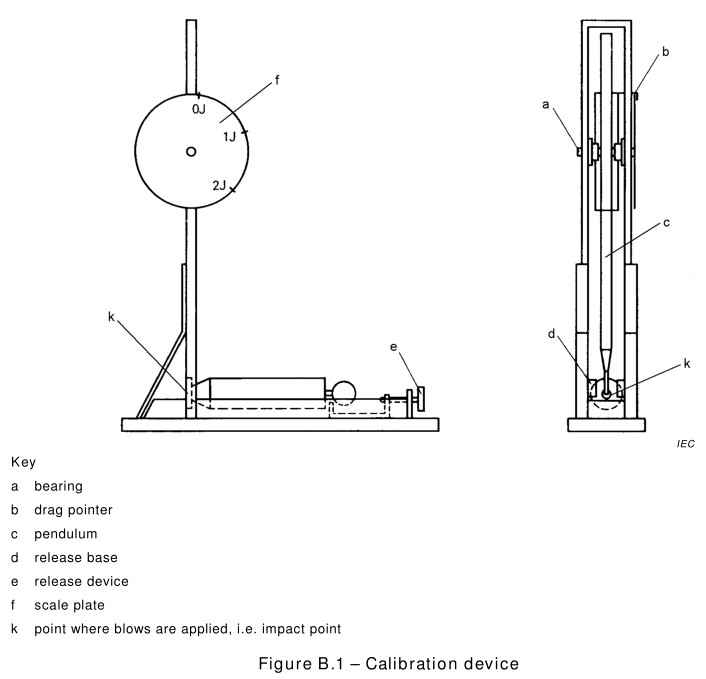

IEC60668-2-75 Calibration Device For Spring Hammers Impact Testing Machine
Standard:
IEC 60668-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests Annex B;
Application:
This device is intended to verify the impact energy of spring operated impact hammers.
Test sample:
Spring hammer test apparatus
Principle of calibration:
The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall.
Parameter:
Model | SH-7 |
Accuracy | 0.01J |
Accuracy | ±0.01J |
Measurement range | 0-2J |
Measurement range | 51mm |
The energy loss of the pendulum | <0.002J |
Trigger distance | >30mm |
Balance weight | 2J Copper weight 1 piece |
![]() |
