IP Test Equipment Dustproof Test Chamber To Verify Protection Against Dust (Dust Chamber)

Standard:

IEC 60529 Degrees of protection provided by enclosures (IP Code) IP5X, IP6X, figure 2.

Standard description:

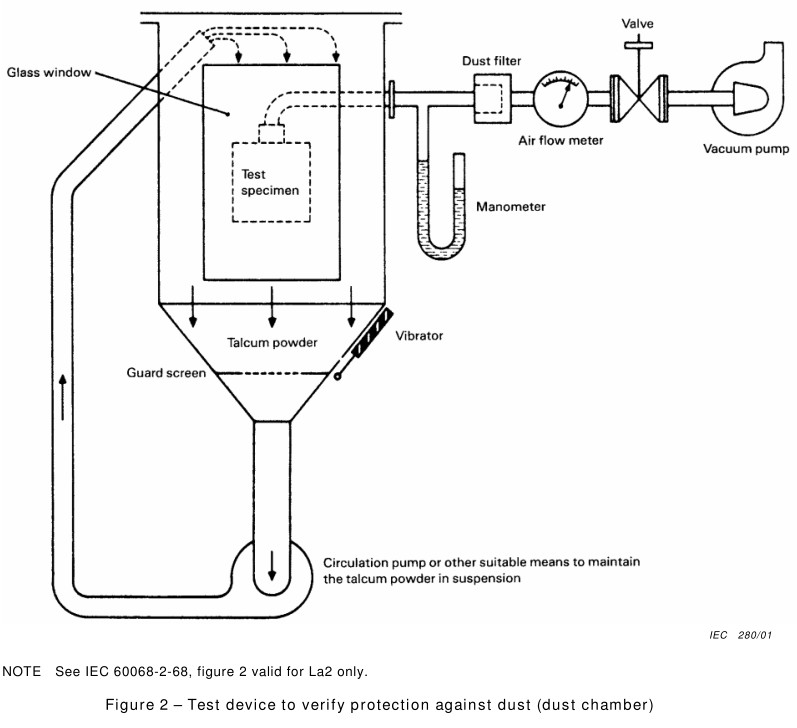

The test is made using a dust chamber incorporating the basic principles shown in figure 2 whereby the powder circulation pump may be replaced by other means suitable to maintain the talcum powder in suspension in a closed test chamber. The talcum powder used shall be able to pass through a square-meshed sieve the nominal wire diameter of which is 50μm and the nominal width of a gap between wires 75μm. The amount of talcum powder to be used is 2 kg per cubic meter of the test chamber volume. It shall not have been used for more than 20 tests.

Application:

The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.

Feature:

The chamber adopts high-quality steel plate electrostatic spraying, matching blue and white, simple and elegant

A 7-inch touch screen is used to control the dust blower, dust vibration and total test time separately

The inner chamber is connected with a high-quality fan with high power and strong dust blowing ability

Built-in heating device to keep the dust dry; a heater is installed in the circulating air duct to heat the dust to avoid dust condensation

A rubber seal is used at the door to prevent dust from floating out

Parameter:

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in R & D, manufacturing and sales of technology intensive industrial equipment. Its main products include laboratory testing equipment and production line detection system, which are widely applied to refrigeration, automotive, electric power industries, military, home appliances and other industries.

The company is led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automatic testing equipment. The company has its own core technology and a number of invention and utility model patents. Relying on a high-level talent team, the company adopts a new production mode focusing on development and design, assembly and debugging and after-sales service, and launches products suitable for its use and technical requirements according to different situations of customers. Since its establishment, the company has launched various types of special equipment to the market. While meeting the domestic market demand, the equipment is also exported to the Americas, Europe, Asia and Africa and other countries and regions. The pursuit of excellence and respect is the business philosophy and the highest guiding principle of the company's operation and management.

Our business goal is to rely on our technology to provide customers with excellent products and services. We will promote core competitiveness, create high performance, and build into the world's top brand in the field of automation and control.
