Test System For Protection Against Water IPX1-1PX8 IP Test
Equipment
Standard:
IEC60529 degree of protection provided by enclosures (IP Code),
clause 14.2.1, 14.2.2, 14.2.3, 14.2.4, 14.2.5, 14.2.6, 14.2.7,
14.2.8, and figure 3, figure 4, figure 5 and figure 6, IPX1, IPX2,
IPX3, IPX4, IPX5 IPX6, IPX7 and IPX8;
DIN40050-9 IP degrees of protection provided by enclosures for the
electrical equipment in road vehicles for protecting the electrical
equipment inside the enclosure against the effects of the ingress
of solid foreign objects, including dust (protection against
foreign objects),protecting the electrical equipment inside the
enclosure against the effects of the ingress of water (protection
against water);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) —
Protection of electrical equipment against foreign objects, water
and access. IP Test Equipment

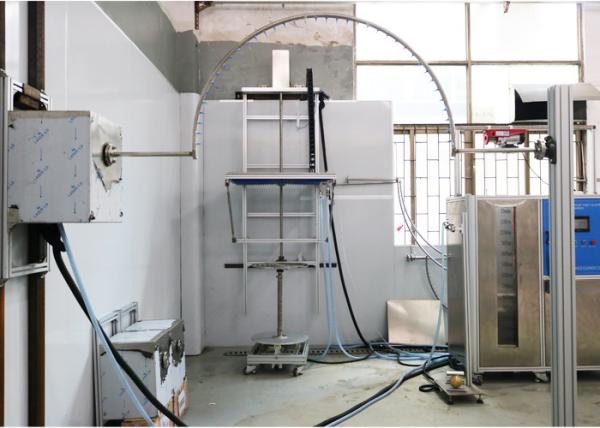

Consist of:
1. Diameter 600mm turntable;
2. Water supply tank (also for IPX7 immersion test) and electrical
control cabinet;
3. Drip test area 1000*600mm for IPX1-2 test;
4. R400mm, R600mm, R800mm oscillating tubes for IPX3-4 test;
5. Hand-held spray nozzle for IPX3-4 test;
6. Jet nozzle for IPX5-6 test;
7. Fixed bracket for hand-held spray nozzle and jet nozzle;
8. Diameter 800mm tank for IPX8 immersion test.
Parameter:
| Item | Specification |
| Power supply for machine | AC220V/60Hz, three-phase five wire |
| Power supply for test sample | ≤ 440Vac 16A |
| Test range | IPX1 to IPX8 |
| Vertical rain-drop area | 1000mm×600mm |
| Vertical Rain-drop aperture | Ф0.4mm |
| Vertical Rain-drop hole distance | 20mm |
| Rainfall by way of Vertical Rain-drop | 1mm/min, 3mm/min |
| Rain-drop height | 200mm |
| Testing time | 10min. |
| Radius of oscillating tubes | R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm
for option |
| Rainfall by way of oscillating tubes | 0.5-10L/min. IP Test Equipment |
| Angle of oscillating tube | 1-350° |
| Aperture of spraying nozzle | Ф0.5mm |
| Number of spraying nozzle hole | 121 |
| Spherical diameter of spraying nozzle | SФ75.5mm |
| Spraying pressure | 50-150Kpa(10L/min) |
| Aperture of jet nozzle | Ф6.3mm (IPX5); Ф12.5mm (IPX6) |
| Rainfall by way of jet nozzle | 12.5±0.626L/min(IPX5); 100±5L/min(IPX6) |
| Rotating speed | 1r/min, 15°inclinable |
| Height of turntable | 1200-1800mm adjustable |
| Diameter of turntable | Ø600mm |
| Rotating speed of turntable | 1rpm |
| Available tilt angle | 15° |
| Rotating angle of turntable | 90°/360°clockwise and counterclockwise rotation, continuous
rotation |
| IPX8 pressure tank | Ø600mm*1000mm |
