    IEC60529 IP Test Equipment

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HH0819
    Certification : calibration certificate (cost additional)
    Price : Negotiatable
    Supply Ability : 10 set per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC60529 IP Test Equipment

    IEC60529 IP Test Equipment IPX1 To IPX7 Waterproof Test System Open Type


    Standard:

    IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1, IPX2, IPX3, IPX4, IPX5 IPX6, IPX7;

    DIN40050-9 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects),protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water);

    ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, figure 3- Test set-up for determining the protection against vertical water drips (drip apparatus); degrees of protection against water 1 and 2, figure 4 - Test set-up for determining the protection against splash water and water spray (swivel tube); degrees of protection against water 3, 4 and 4K, figure 5 - Manual test set-up for determining the protection against splash water and water spray (shower tube); degrees of protection against water 3 and 4, figure 6 - Nozzle for determining the protection against high-velocity water; degrees of protection against water 5, 6 and 6K


    Consist of:

    1. Diameter 600mm turntable;

    2. Water supply tank (also for IPX7 immersion test) and electrical control cabinet;

    3. Drip test area 1000*600mm for IPX1-2 test;

    4. R400mm, R600mm, R800mm oscillating tubes for IPX3-4 test;

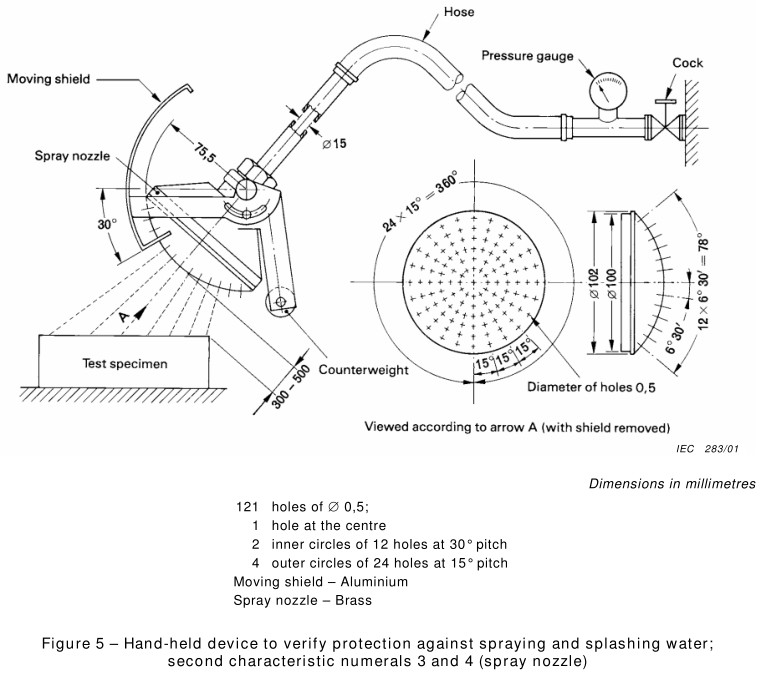

    5. Hand-held spray nozzle for IPX3-4 test;

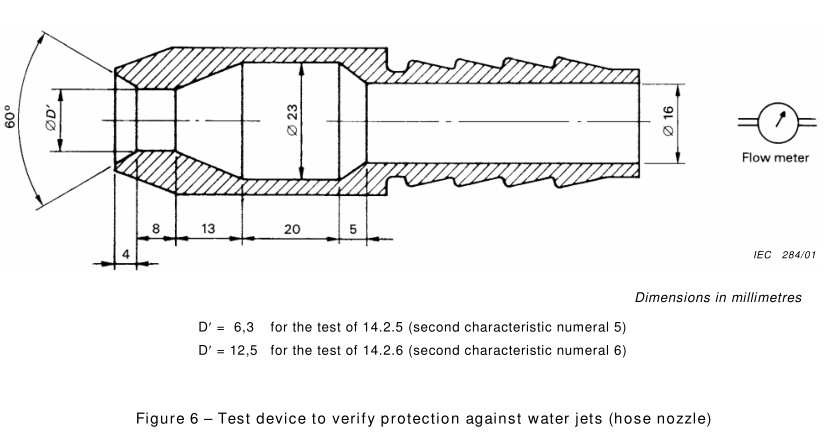

    6. Jet nozzle for IPX5-6 test;

    7. Fixed bracket for hand-held spray nozzle and jet nozzle. IP Test Equipment


    All equipment fully complies with IEC 60529 (IP Code standard) and all other international standards with similar tests.


    IP Code PEOBESAll Products (IP Code Testing)
    1XProtected against solid foreign objects of 50 mm ∅ and greaterX1Protected against vertically falling water drops
    2XProtected against solid foreign objects of 12.5 mm ∅ and greaterX2Protected against vertically falling water drops when enclosure tilted up to 1 5°
    3XProtected against solid foreign objects of 2.5 mm ∅ and greaterX3Protected against spraying water
    4XProtected against solid foreign objects of 1.0 mm ∅ and greaterX4Protection against splashing water
    5XDust-protectedX5Protection against low pressure jetting water
    6XDust-tightX6Protection against high pressure jetting water
    X7Protected against the effects of temporary immersion in water
    X8Protected against the effects of continuous immersion in water
    X9Protected against high pressure and temperature water jets

    IEC60529 IP Test EquipmentIEC60529 IP Test Equipment
