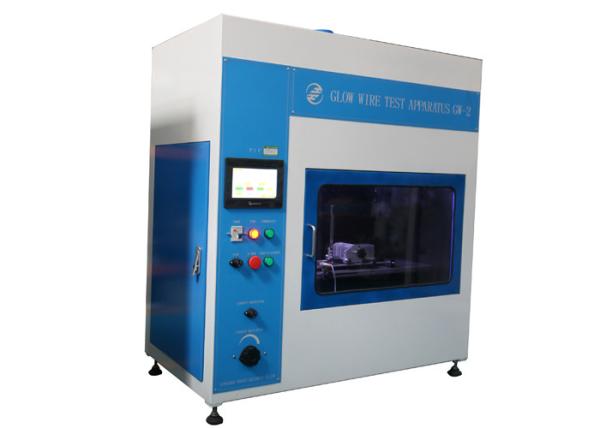

IEC60695-2-10 Flammability Testing Equipment Glowing/Hot-Wire Tester With Touch Screen Operation

Standard:

IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure,

IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products,

IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials,

IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.

Application:

This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in a short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

Test principle:

the glowing filament whose material and shape is required(Ni77/Cr20) is heated to the testing temperature of 550 ℃ - 960 ℃ for 1 min by using the glow wire tester with large current. Then using required pressure (0.95N) vertically burns the test sample for 30s. By observing whether the test sample and bedding object ignite or the burning time, the users can judge the ignition danger of electric and electronic products. It is used for the ignition test, ignition temperature (GWIT) test, flammability test and flammability index (GWFI) test of solid insulating material and other solid combustible material.

Parameters:

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in R & D, manufacturing and sales of technology intensive industrial equipment. Its main products include laboratory testing equipment and production line detection system, which are widely applied to refrigeration, automotive, electric power industries, military, home appliances and other industries.

The company is led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automatic testing equipment. The company has its own core technology and a number of invention and utility model patents. Relying on a high-level talent team, the company adopts a new production mode focusing on development and design, assembly and debugging and after-sales service, and launches products suitable for its use and technical requirements according to different situations of customers. Since its establishment, the company has launched various types of special equipment to the market. While meeting the domestic market demand, the equipment is also exported to the Americas, Europe, Asia and Africa and other countries and regions. The pursuit of excellence and respect is the business philosophy and the highest guiding principle of the company's operation and management.

Our business goal is to rely on our technology to provide customers with excellent products and services. We will promote core competitiveness, create high performance, and build into the world's top brand in the field of automation and control.
