IEC 60332 Metal Enclosure Flammability Testing Equipment For Vertical Flame Ignition Source Comply With IEC60695-11-2

Product information:

This apparatus conforms to the standard requirement of IEC60332-1-1 Tests on electric and optical fibre cables under fire conditions – Part 1-1: Test for vertical flame propagation for a single insulated wire or cable – Apparatus, IEC60332-1-2, IEC60332-1-3.

Application:

It is applicable for vertical combustion test of the single electric wire or cable. It is used to measure the combustion characteristic of insulation. The burning time can be preset according to the specimen. It is convenient to adjust the flame height.

Feature:

The test apparatus shall comprise the following:

a) a metal enclosure;

b) an ignition source;

c) a suitable chamber.

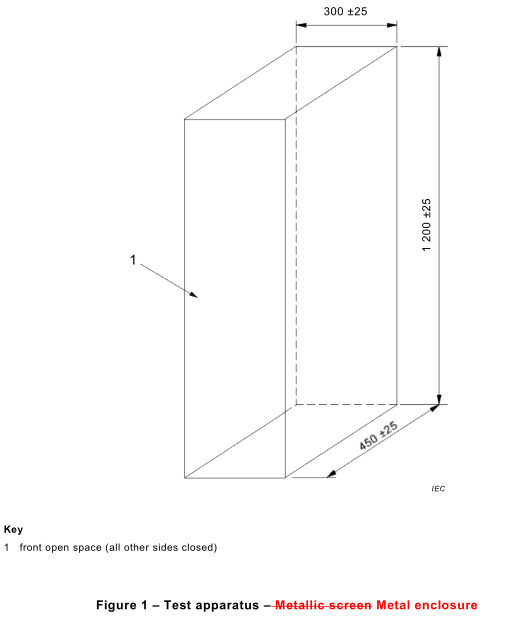

A metal enclosure (1 200 ± 25) mm high, (300 ± 25) mm wide and (450 ± 25) mm deep with open front and closed top and bottom, (see Figure 1 ), shall be used, in order to protect the test sample from draughts. It shall be constructed of rigid sheet metal.

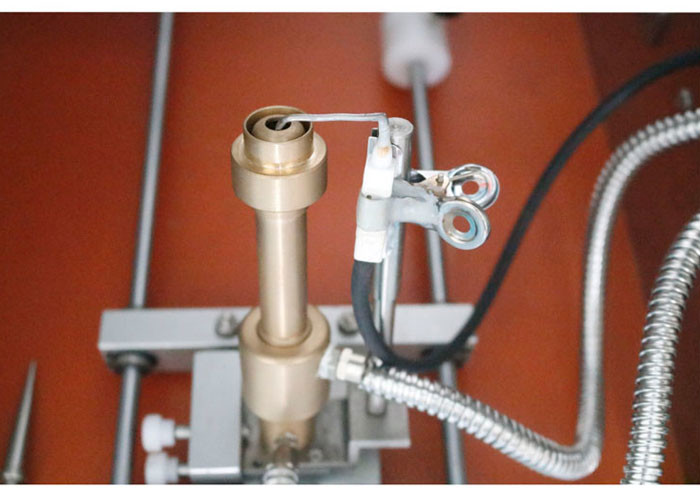

The ignition source shall comply with IEC 60695-11 -2, which includes a method of confirmation of the test flame, except that the laboratory fumehood/chamber shall comply the below:

The metal enclosure and ignition source shall be contained within a suitable chamber, substantially free from draughts during the test duration, but with facilities for disposing of noxious gases resulting from burning. The chamber shall be maintained at a temperature of (23 ± 1 0) °C.

Technical parameters:

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in R & D, manufacturing and sales of technology intensive industrial equipment. Its main products include laboratory testing equipment and production line detection system, which are widely applied to refrigeration, automotive, electric power industries, military, home appliances and other industries.

The company is led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automatic testing equipment. The company has its own core technology and a number of invention and utility model patents. Relying on a high-level talent team, the company adopts a new production mode focusing on development and design, assembly and debugging and after-sales service, and launches products suitable for its use and technical requirements according to different situations of customers. Since its establishment, the company has launched various types of special equipment to the market. While meeting the domestic market demand, the equipment is also exported to the Americas, Europe, Asia and Africa and other countries and regions. The pursuit of excellence and respect is the business philosophy and the highest guiding principle of the company's operation and management.

Our business goal is to rely on our technology to provide customers with excellent products and services. We will promote core competitiveness, create high performance, and build into the world's top brand in the field of automation and control.
