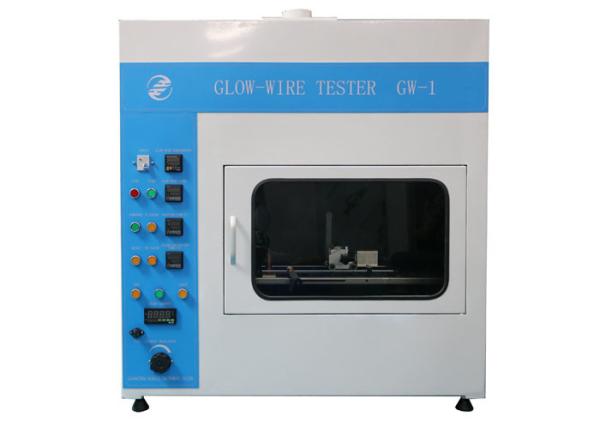

IEC60695-2-10 Flammability Testing Equipment Glowing/Hot-Wire Tester With Button Operation

Standard:

IEC60695-2-10 Fire hazard testing – Part 2-10: Glowing/hot-wire based test methods – Glow-wire apparatus and common test procedure;

IEC60695-2-11 Fire hazard testing – Part 2-11 : Glowing/hot-wire based test methods – Glow-wire flammability test method for end-products;

IEC60695-2-12 Fire hazard testing – Part 2-12: Glowing/hot-wire based test methods – Glow-wire flammability index (GWFI) test method for materials;

IEC60695-2-13 Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods – Glow-wire ignitability test method for materials.

Application:

This device simulates the thermal stress caused by the heat source or ignition source such as the glowing elements or overload power within the short period of time, applicable to the fire hazard test for the electric and electronic products, household appliances and the materials, and also used for the no-flame ignition source fire test in order to measure the ignition temperature, flammability and heat-resistance index of the glow wire made of the relevant materials.

Feature:

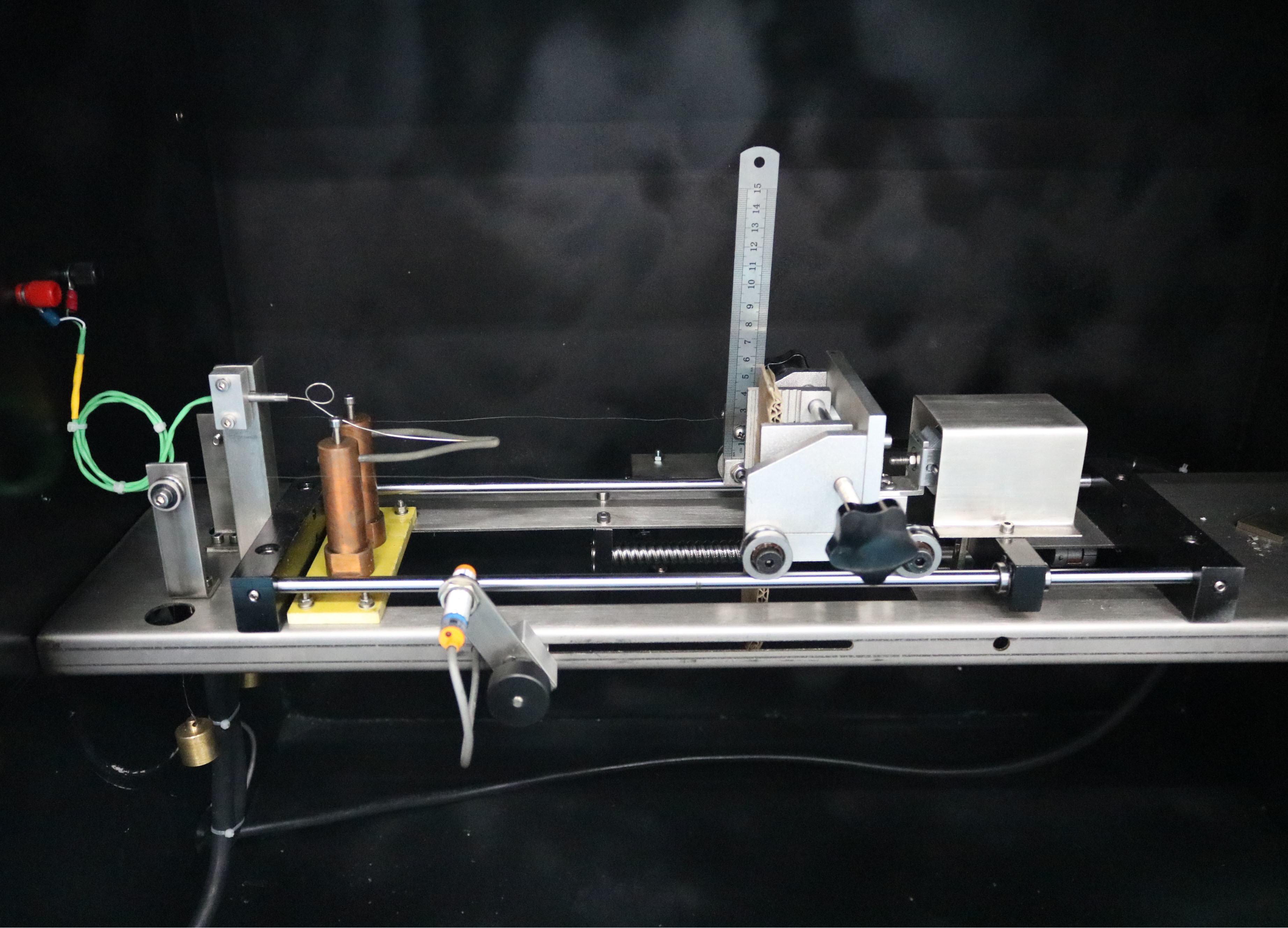

The test equipment adopts to solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge. The test sample will break away automatically from glowing filament after reaching the set time. Also adopting the original imported UK LAB K type armour (Ф1mm) whose temperature resistance is up to 1100° (exceed 1050°of standard requirement), this device is with accuracy temperature control.

Parameters:
