Static Burst Pressure Oil Filter Test Machine ISO 4548-6-2012

Product overview:

The Static Burst Pressure Test Rig for Oil Filter is used for testing full-flow lubricating oil filters for internal combustion engines to determine there ability to withstand a static pressure objective and to determine their burst pressure and failure mode concerned.

It does not apply to filters for use in aeronautical applications or plastic components. Auto Parts Test Equipment

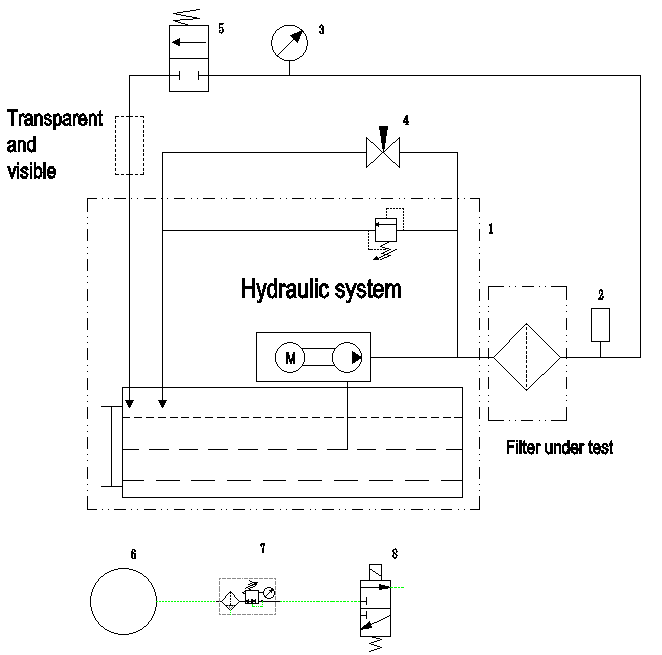

Test Principle:

The filter is placed in an observable protective box with a safety protection device, and the filter is pressurized about 345kpa-690kpa per minute until the specified target pressure value and maintain for approximately 15 s until ultimate failure occurs, and the test liquid is recovered. During this period, the relevant values are recorded and a test report is formed. Auto Parts Test Equipment

Standard:

The Static Burst Pressure Test Rig for Oil Filter meet the standard of ISO 4548-6-2012, GB/T 8243.6-2017. Auto Parts Test Equipment

Filter to be tested:

Full-flow lubricating oil filters.

Parameters:
