    15KW Less Than 75db Auto Parts Test Equipment Tightness Testing car battery test

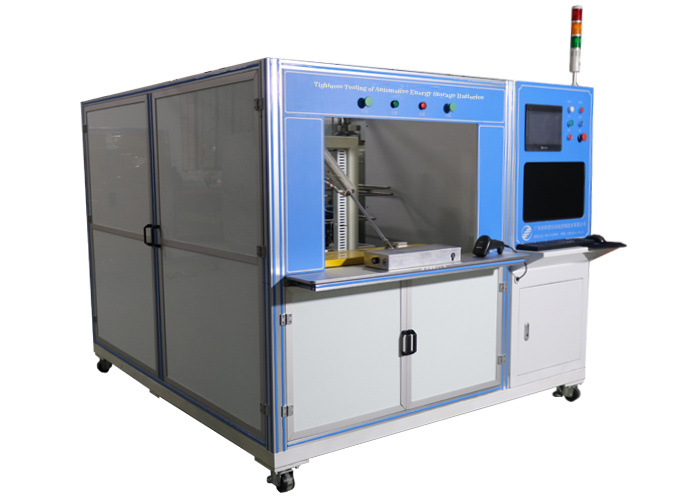

    Tightness Testing of Automotive Energy Storage Batteries

    Products Introduction:

    This equipment is a helium detector for the steel shell battery after the injection hole is sealed and welded. It mainly includes processes such as battery scanning, feeding, evacuation, helium filling, helium inspection, and unloading. The helium signal in the leak detection cavity is detected by the helium leak detector, which can judge the leakage of the workpiece quickly and accurately with high precision. Auto Parts Test Equipment


    Technical Parameters:

    Size≦2000mm*2500mm*2000mm
    Alarm leak rate5E-5 mbar.l/sec
    Energy consumption15KW
    Detection station1 station
    Helium filling pressure0-0.5MPa
    Gross leak detection methodNegative pressure leak detection
    Production takt34s/pieceIncluding manual operation for 6 seconds
    Product sealing methodAutomatically
    Loading and unloading productsManual
    FixtureA total of 2 sets of fixtures for 1 productFixtures need to be changed when testing different products
    Data processingWith data processing and parameter storage functionData processing
    Noise≦75db(1 meter away from the device)Does not count when the device starts

    Pricute:

    Quality 15KW Less Than 75db Auto Parts Test Equipment Tightness Testing car battery test for sale
