    17.5KW Salt Fog Test Box Auto Parts Test Equipment IEC61701

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : AM0046
    Certification : Calibration Certificate(cost additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 set /month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

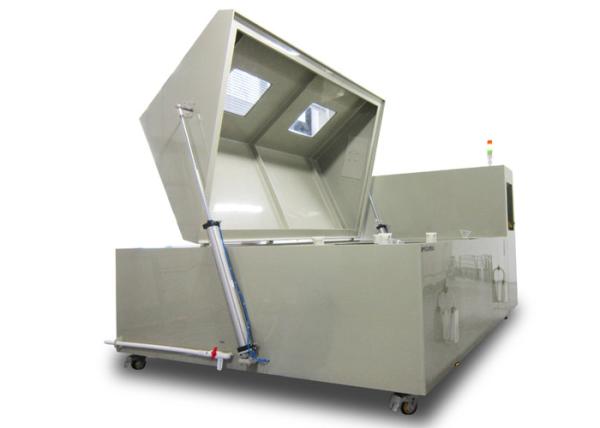

    17.5KW Salt Fog Test Box Auto Parts Test Equipment IEC61701

    Salt Fog Test Box For Auto Parts Auto Parts Test Equipment IEC 68 IEC61701 IEC 60068


    Products Introduction:

    The salt fog test box of automobile parts is suitable for components or equipment scheduled to tolerate the salt atmosphere. During the test, the corresponding harsh grade is selected according to its tolerance procedures. The test steps are generally wet, salt fog, drying, etc.Auto Parts Test Equipment


    Meet a criterion:

    GB-T10587-2006 Salt Fog Test Chamber Technical ConditionsAuto Parts Test Equipment

    IEC61701:1995 Salt Mist Corrosion Testing of Photovoltaic (PV) Modules

    GBT 2423.33-2005 Environmental Testing for Electric and Electronic ProductsAuto Parts Test Equipment

    IEC 68-2-52 Corrosion Testing Standards

    IEC 60068-2-11: 1981 Basic Environmental Testing Procedures - Part 2-11: Tests - Test Ka: Salt Mist


    Parameters:

    Unit typeStudio Dimensions (D * W * H) mmExterior size (D * W * H) mm
    AM0046-108-RFHY450×600×400Refer to the three view drawing of the contract Auto Parts Test Equipment
    AM0046-270-RFHY600×900×500
    AM0046-412-RFHY750×1100×500
    AM0046-663-RFHY850×1300×600
    AM0046-816-RFHY850×1300×600
    AM0046-1080-RFHY900×2000×600












    Performance index
    Temperature rangeRT+5℃~60℃
    Humidity range30%~98% RH
    Saturating bucket temperatureRT+10℃~70℃
    Temperature uniformity2℃ (on empty load)
    Temperature fluctuation± 0.5℃ (on no-load)
    Salt fog settlement1~2ml/80 cm².mean h (16 hours)
    Heating rate0.5℃~1.5℃/min
    Cooling rate0.5℃~1.0℃/min
    Compress air pressure2.00±0.01(kg/cm²)
    Spray methodContinuous / periodic selection is optional
    Test frame AngleCan meet the 15 °, 30 ° tilt test
    Experimental methodNSS test AASS test CASS test


    Used
    Material
    Box materialPP enhanced hard plastic plate or 316 stainless steel
    Box cover materialPP enhanced hard plastic plate or 316 stainless steel
    Air saturated bucketImport advanced stainless steel SUS304
    Pressurized air tube materialHigh quality rubber pipe
    Other pipesReinforced fluorosilicone rubber tube




    The core configuration
    Temperature controllerJapan the original imported "UNIQUE" brand temperature and humidity instrument
    Removal of wet and coolingSingle machine or double machine cascade refrigeration
    Temperature sensorPT100 Platinum resistance thermometers
    Pressure, shrink, machineTecumseh, France
    Heating pipeTitanium alloy heating pipe
    Circuit breakerSchneider small circuit breaker (prevent short circuit to control circuit)
    Standard layoutV sample rack, round rod, nozzle, funnel, metering tube and Salt mist exhaust pipe
    Security guardExcessive temperature, overall equipment phase / reverse phase, overall equipment timing, end of rapid fog discharge indication test, low water level protection, leakage, short circuit,
    Compressor overheating and compressor overpressure
    Supply voltageAC380V±10% 50Hz
    Power8.5KW/10.0KW/12.0KW/13.5KW/15.0KW/17.5KW
    Service environment5℃~+28℃ ≤85% RH
    Note:
    Data were measured at an ambient temperature of 25℃ and under well ventilated conditions
    The above parameters are for reference only, and can be customized according to the user's specific test parameters
    This Technical information is subject to change without notice
