    GB13380 computer control Pedestal Fan Performance Test Lab

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HJFVA01
    Certification : Third party calibration certificate(cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 1 set per 3 month
    Delivery Time : 3 months
    • Product Details
    • Company Profile

    GB13380 computer control Pedestal Fan Performance Test Lab

    Appliance Performance Test Lab Table Fan/ Pedestal Fan Air Performance Test Chamber


    Standard:

    GB13380 AC electric fans and regulators annex A

    GB 12021.9 Minimum allowable values of energy efficiency and energy efficiency grades for AC electric fans

    IEC 60879 Comfort fans and regulators for household and similar purposes- Methods for measuring performance clause 5.2


    Application:

    The table fan/floor fan air performance test system meets the requirements of GB/T13380-2007 standard for air performance test. It has a reasonable design, high degree of automation, easy to use, and durable. It is made of steel plate with a thickness of at least 30mm, which is load-bearing and resistant. Strong vibration ability; Appliance Performance Test Lab


    Test sample range:

    200mm ~ 600mm table fan, wall fan, floor fan, top fan and louver fan, pedestal fan;


    Feature:

    The system adopts computer control, which can display the wind speed value of each test point, generally one measurement point every 3 minutes (including walking position, delay and test time), and the average wind speed and point air volume of each ring can automatically generate detection The results and process curves are printed out.

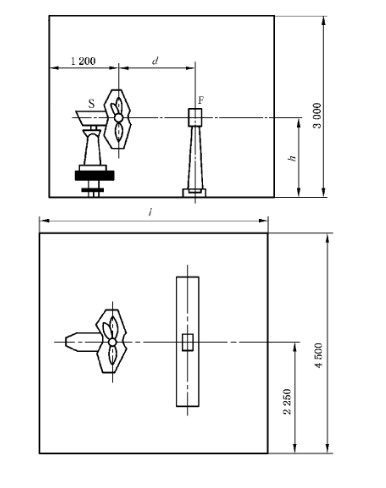

    Test Chamber:

    LengthElectric fan less than or equal to 400mm is 4500mm, electric fan greater than 400mm is 6000mm
    Width4500mm
    Height3000mm

    GB13380 computer control Pedestal Fan Performance Test Lab

    Quality GB13380 computer control Pedestal Fan Performance Test Lab for sale
