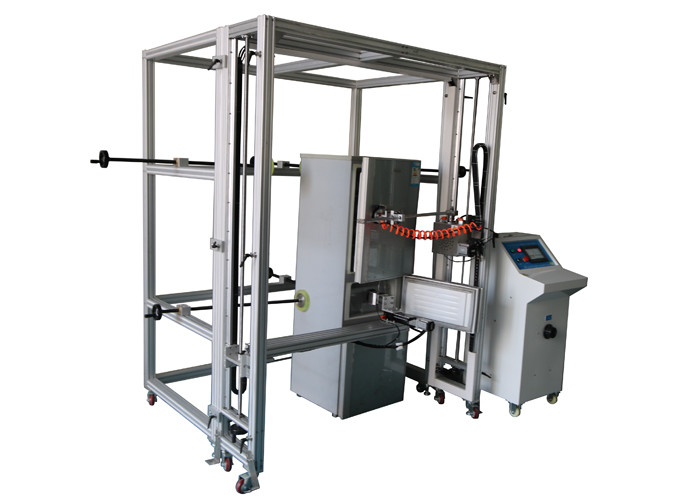

IEC 60335-2-24 Refrigerator Door Endurance Tester

Household Appliance Test Equipment Refrigerator Door Endurance Tester

Standard:

IEC 60335-2-24 ‘Household and similar electrical appliances - Safety - Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice makers’ clause 22.112

IEC 62552 ‘Household refrigerating appliances-Characteristics and test methods-Part 1:general requirements’ clause 11.2 ,clause 11.3

Product information:

The integrated door endurance tester is special designed and manufactured as per IEC 60335-2-24 clause 22.112, IEC 62552 clause 11.2, clause 11.3 and etc. Suitable for refrigerator door test. It is a special equipment for durability and structural testing of refrigerator doors.

The equipment adopts advanced PLC intelligent control system, touch screen humanized operation interface to make recording and display more accurate; with preset test times, on current detection, load voltage regulation and display, test speed, test stroke, open / close door pull force setting, pull force transient curve display, test data storage and query, fault alarm and other functions, can be analyzed by the data record whether the test sample is qualified or not. It is the first choice for large metrology institutions and laboratories. Household Appliance Test Equipment

Technical parameters:

Specimen Range, Use, Principle, Structure And Use Environment
Samples And Limitations	Refrigerating Appliances (Refrigerator)
Test Purposes	It is used for endurance life testing of interlocks or guides for refrigerator doors or drawers to verify the reliability of interlocks; also used to assist other tests for repeated door opening and closing operations, such as defrosting test and refrigerant leak test
Test Principle	The motor drives the manipulator, driving the door or cover sucked by the Vacuum sucker to reciprocate at a certain speed, to verify the reliability of interlocking device.
Structure	The equipment is divided into an electrical control cabinet (including load voltage regulator), a frame and a robot arm. Size:1500×1300×2200(mm)W×D×H Weight :140kg
Operation Environment	Power supply : AC220V±10%/50-60Hz, power :6KW Air source : 0.5-0.7MPa Compressed air Place Of Use: Atmospheric pressure 80 ~ 106kpa; Ambient temperature 5～40°C; relative humidity(20～80)%RH; No violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation
Performance
Test Station	Revolving Door Action Position Drawer action station
Electrical Control Method	PLC intelligent integrated control, 7-inch human-machine touch interface operation
Drive Mode	Servo motor drive
Sample Clamping Method	Vacuum sucker
Open/Close Door Speed	Revolving Door Action: 0-360°/s(1.5m/s), can be preset Drawer action: 0-100mm/s, can be preset
Revolving Open Close Door Angle	0-90°, can be preset
Drawer Door Opening Distance	0-100mm, can be preset
Test Times	0-999999 times , can be preset
Load Voltage	0-250V, adjustable
Test Item And Crafting Process	1. Refrigerator door interlock device endurance test Process: Vacuum sucker automatic suck the door---- Open the door to a preset angle at a preset speed(45°)---- close the door at preset speed---- Repeatedly open and close the door until reaches the test times 2. Refrigerator drawer door endurance test Process: Vacuum sucker automatic suck the door---- Open the drawer to the preset distance at a preset speed(15-25mm)----Close drawers at preset speed----Repeatedly open and close the drawer until reaches the test times
Safety Protection Device
Power	Leakage protection, overload and short circuit protection
Motor	Overload, short circuit protection
