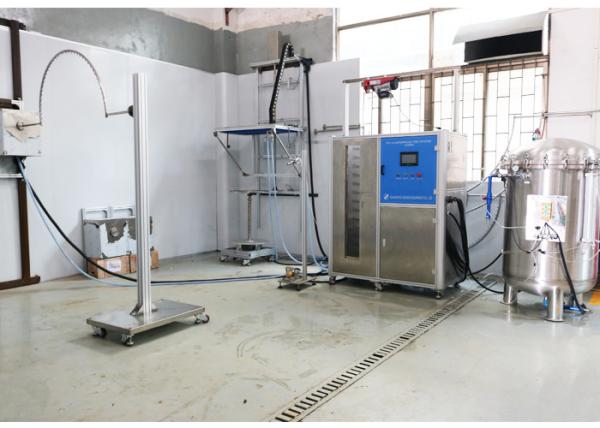

IPX1 1PX8 Auto Parts Test Equipment For Degrees Protection Against Water

Ask Lasest Price
Brand Name :	HeJin
Model Number :	HH0820
Certification :	calibration certificate (cost additional)
Price :	Negotiatable
Supply Ability :	10 set per month
Delivery Time :	40 days

Add to Cart

Product Details
Company Profile

IPX1 1PX8 Auto Parts Test Equipment For Degrees Protection Against Water

IPX1-1PX8 Test System For Degrees of Protection Against Water Auto Parts Test Equipment

Standard:

ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, figure 3, figure 4, figure 5 and figure 6 and table 7;

IEC60529 degree of protection provided by enclosures (IP Code), clause 14.2.1, 14.2.2, 14.2.3, 14.2.4, 14.2.5, 14.2.6, 14.2.7, 14.2.8, and figure 3, figure 4, figure 5 and figure 6, IPX1, IPX2, IPX3, IPX4, IPX5 IPX6, IPX7 and IPX8; Auto Parts Test Equipment

DIN40050-9 IP degrees of protection provided by enclosures for the electrical equipment in road vehicles for protecting the electrical equipment inside the enclosure against the effects of the ingress of solid foreign objects, including dust (protection against foreign objects),protecting the electrical equipment inside the enclosure against the effects of the ingress of water (protection against water).

Parameter:

Item	Specification
Power supply for machine	AC220V/50Hz(customizable), three-phase five wire
Power supply for test sample	≤ 440Vac 16A
Test range	IPX1 to IPX8
Vertical rain-drop area	1000mm×600mm
Vertical Rain-drop aperture	Ф0.4mm
Vertical Rain-drop hole distance	20mm Auto Parts Test Equipment
Rainfall by way of Vertical Rain-drop	1mm/min, 3mm/min
Rain-drop height	200mm
Testing time	10min.
Radius of oscillating tubes	R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm for option
Rainfall by way of oscillating tubes	0.5-10L/min.
Angle of oscillating tube	1-350°
Aperture of spraying nozzle	Ф0.5mm
Number of spraying nozzle hole	121
Spherical diameter of spraying nozzle	SФ75.5mm
Spraying pressure	50-150Kpa(10L/min)
Aperture of jet nozzle	Ф6.3mm (IPX5); Ф12.5mm (IPX6)
Rainfall by way of jet nozzle	12.5±0.626L/min(IPX5); 100±5L/min(IPX6)
Rotating speed	1r/min, 15°inclinable
Height of turntable	1200-1800mm adjustable
Diameter of turntable	Ø600mm
Rotating speed of turntable	1rpm
Available tilt angle	15°
Rotating angle of turntable	90°/360°clockwise and counterclockwise rotation, continuous rotation
IPX8 pressure tank	Ø600mm*1000mm

Table 7- Test set-ups and conditions for testing degrees of protection against water

2_nd code element	Test equipment Test conditions	Water flow rate	Water pressure	Water temperature	Exposure time
1	Drip apparatus Figure 3 Enclosure on turntable Speed approx. 1 r/min	(1,0 + 0,5) mm/min (precipitation height)	-	Difference of the temperature of the equipment under test no more than 5 °C. For water temperatures which are more than 5 °C lower, meas- ures shall be agreed between the users of the standard to prevent the formation of con-densed water.	10 min
2	Drip apparatus Figure 3 Enclosure in 4 fixed positions, inclined by 15°	(3,0 + 0,5) mm/min (precipitation height)	-		2,5 min for each of the four positions
3	Swivel tube Figure 4 with apertures diameter 0,4 mm to ± 60° from the vertical plane spray while swivelling the swivel tube by ± 60° with reference to the vertical plane at a rate of approx.1 s/60° Max. distance 200 mm	0,1 l/min ± 5 % per aperture (medium value), or	approx. 80 kPa		10 min (5 min in one position, 5 min in a position swivelled from this position by 90° along the horizontal level)
	or shower tube Figure 5 spray while swivelling the shower tube by ± 60° with reference to the vertical plane Max. distance 500 mm	10 l/min ± 5 %	50 kPa to 150 kPa		5 min
4	Swivel tube Figure 4 as under 3, but with apertures diameter 0,4 mm ± 90° from the vertical plane; spray while swivelling the swivel tube by ± (180° to 20°) with reference to the vertical plane at a rate of approx. 1 s/60° Max. distance 200 mm	as under 3	as under 3		as under 3
4	or shower tube Figure 5, but with removed cover, spray while swivelling the shower tube by ± 90° with reference to the vertical plane Max. distance 500 mm	as under 3	as under 3		as under 3
4K	Swivel tube Figure 4 as under 3, but with apertures diameter 0,8 mm ± 90° from the vertical plane, spray while swivelling the swivel tube by ± (180° to 20°) with reference to the vertical plane at a rate of approx. 1 s/60° Max. distance 200 mm	0,6 l/min ± 5 % per aperture (medium value)	approx. 400 kPa		10 min (5 min in one position, 5 min in a position swivelled from this position by 90°)
5	Water jet, nozzle 6,3 mm diameter according to Figure 6 Distance 2,5 m to 3 m	12,5 l/min ± 5 %	approx. 30 kPa		3 min
6	Water jet, nozzle 12,5 mm diameter according to Figure 6 Distance 2,5 m to 3 m	100 l/min ± 5 %	approx. 100 kPa		3 min
6K	Water jet, nozzle 6,3 mm diameter according to Figure 6 Distance 2,5 m to 3 m	75 l/min ± 5 %	approx. 1 000 kPa		min. 3 min
7	Immersion basin immersion depth: 1 m (deepest housing location) 0,15 m water above highest housing location, if housing is larger than 0,85 m	-	-		30 min
8	Submersion basin water level: and submersion depth as agreed between the users of the standard	-	-	-	subject to agreement
