    Compressor Air 0.8Mpa Helium Leak Testing Machine With Detector

    Ask Lasest Price
    Brand Name : HeJin
    Certification : Third party calibration certificate(cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 3 set per 3 month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Compressor Air 0.8Mpa Helium Leak Testing Machine With Detector

    Helium Leak Testing Machine With High-Precision Leak Detector


    Parameter:

    WorkpieceHeating tank. Leak Testing Equipment
    Vacuum chamber1 chamber, 2 work pieces can be tested at the same time
    Chamber sizeL700mm*W300mm*H600mm
    Maximum workpiece sizeØ240*400
    Quick coupling in vacuum chamber2 sets
    Gas for Gross Leak Test

    Compressor air (0.8Mpa), down adjustable

    Detection of gross leakage point by soaking water method

    Gas for Fine Leak Test

    Helium(0.8Mpa), down adjustable

    Sniffer check leak point

    Actual leakage rate5x10-4mbar.L/s
    Alarm leak rate5x10-5mbar.L/s
    Equipment maximum accuracy5x10-6mbar.L/s
    production efficiency1 minute / piece (loading and unloading time is Not included)
    Helium RecoveryRecovery Rate ≥95%
    Test CycleAutomatic
    Loading and unloading of productsManual

    Accuracy guarantee:

    The machine is provided with standard leak, which is certified by China National Measuring Institute.

    Leak detector self-calibration: the helium leak detector has internal standard leak, and has auto-calibration function. As required, can start the leak detector self-calibration for sensibility and accuracy. Leak Testing Equipment

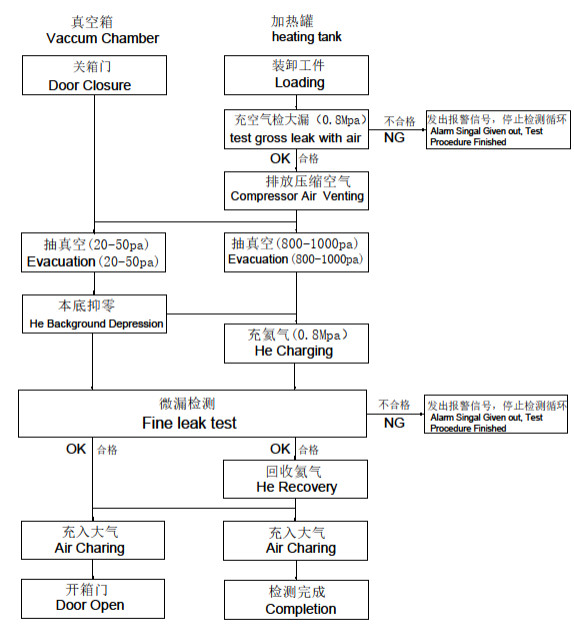

    Test flow:

    Compressor Air 0.8Mpa Helium Leak Testing Machine With Detector
