Vacuum Chamber Helium Leak Testing Equipment For Auto Condenser And
Evaporator
Product information:

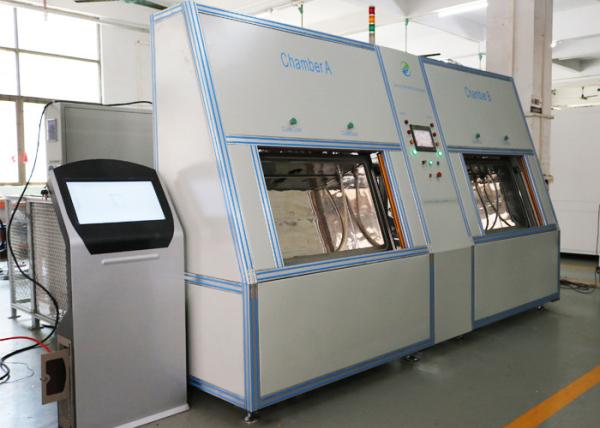

The Helium Leak Detection System is specially designed for leak
test of auto parts like Condenser, Evaporator, Automobile radiator,
Engine cooler, switch gears, and it is the most efficient
industrial-scale automatic leak testing equipment for heat
exchangers in market.
The system is able to run the following tests:
Leak detection with pressure decay method to find Gross Leaks.
Helium test with mass spectrometer to find Fine leaks. Helium Leak Testing Equipment
Features:
PLC control, touch screen display
All automatic leak testing with over all leak test
Non operator dependent
Back ground suppression technology, ensure precise testing
Automatic digital pass/Fail indication.
Ensure operation reliability
System Description:
The chamber helium leak test system proposed has the totally
automatic cycle with manual load and unload of the tested piece.
The Test Cycle can be described in the following way:
Manual load of the tested piece in the Test Chamber.
Closure of the Chamber.
Evacuation of the Chamber to a value of vacuum suitable for Leak
Test with Mass Spectrometer. During the evacuation of the Chamber,
the system will run the following Tests on the tested piece:
Pressure decay to reveal Gross Leaks;
Tested piece evacuation;
Reaching a vacuum value suitable for transfer, that is to put the
mass spectrometer in communication with the Test Chamber.
Reading of background, which is the residual Helium in the Test
Chamber.
Pressurization of tested piece with Helium.
Leak test with Mass Spectrometer.
Ventilation of the Test Chamber (return to atmospheric pressure),
Helium Recovery from tested piece.
Opening of the Chamber
Manual unloads of tested piece.
Parameter:
| Workpiece | Condenser, Evaporator, Automobile radiator, Engine cooler |
| Vacuum Chamber | 2 chambers ( Support customization) |
| Pressure for Gross Leak Test | Nitrogen / Compressed Air 4.2Mpa (Downward adjustable) |
| Gas for Fine Leak Test | Helium |
| Detection leak rate | 1 x 10-5 mbar.l/s |
| Cycle Time | 30-60 sec./pcs |
| Helium Recovery | Recovery Rate ≥95% |
| Loading and unloading of products | Manual Helium Leak Testing Equipment |
| Test Cycle | Automatic |
