    200g Striking IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HC9921
    Certification : Third party calibration certificate(cost additional)
    Price : Negotiatable
    Payment Terms : L/C, T/T
    Supply Ability : 10 set per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    200g Striking IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength

    IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength


    Standard:

    IEC 60668-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests clause 5 Test Eha: Pendulum hammer and Annex D;

    IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 24.1, figure 22-26.


    Application:

    Accessories, surface mounting boxes, screwed glands and shrouds shall have adequate mechanical strength so as to withstand the stresses imposed during installation and use.

    The specimens are checked by applying blows by means of the pendulum hammer test apparatus as described in IEC 60068-2-75 (test EHA), with an equivalent mass of 250 g. IEC Test Equipment


    Parameter:

    ModelHC9921
    Pendulum

    Length: 1000mm

    External diameter: 9mm

    Wall thickness: 0.5 mm

    Made by steel

    Release modeManual
    Mounting bracket

    Weight: 10 kg ± 1 kg

    It is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.

    Striking element150g, equivalent mass 200g. (200g striking element for option). IEC Test Equipment

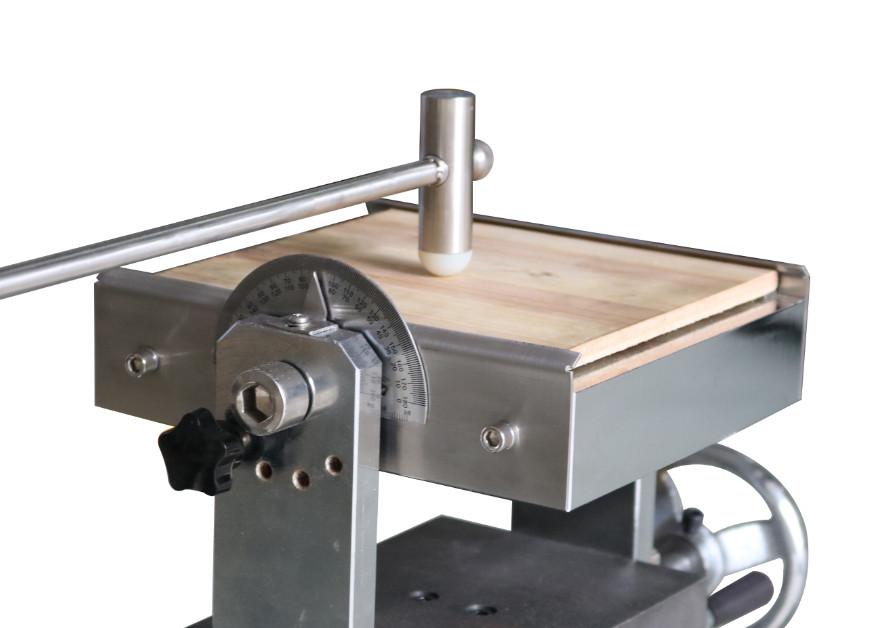

    Mounted box

    a sheet of plywood, 8 mm nominal thickness and approximately 175 mm square, secured at its top and bottom edges to a rigid bracket which is part of the mounting support.

    200g Striking IEC Test Equipment Pendulum Hammer Test Apparatus For Mechanical Strength

    StandardsIEC 60068-2-75, IEC60884-1
