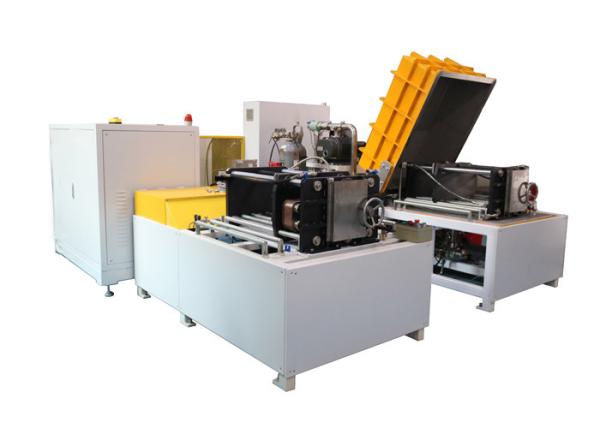

Helium Leak Testing Equipment For Plate Heat Exchanger With 2 Test Stations

Test principle:

According to the basic leak detection principle of helium leak detection, helium is used as the tracer gas. In the internal leak detection cycle, helium is filled into the B cavity of the workpiece to detect the internal leak between A and B; in the external leak detection cycle, A and B are filled with helium at the same time to detect the leakage of the cavity; the helium leak detector can accurately determine the leakage of the plate heat exchanger with high accuracy, quickly and accurately.

The workpiece first detects the internal leakage at the internal leakage detection station, and then pushes the product to the external leakage detection station through the conveyor line to detect the external leakage.

For a three-cavity workpiece, in the internal leakage detection cycle, cavity A is filled with helium to detect the leakage between AB and AC; in the external leakage detection cycle, A, B, and C are simultaneously filled with helium to detect the external leakage of the cavity . Leak Testing Equipment

Parameters: (can be customized according to client's requirements)

Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in R & D, manufacturing and sales of technology intensive industrial equipment. Its main products include laboratory testing equipment and production line detection system, which are widely applied to refrigeration, automotive, electric power industries, military, home appliances and other industries.

The company is led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automatic testing equipment. The company has its own core technology and a number of invention and utility model patents. Relying on a high-level talent team, the company adopts a new production mode focusing on development and design, assembly and debugging and after-sales service, and launches products suitable for its use and technical requirements according to different situations of customers. Since its establishment, the company has launched various types of special equipment to the market. While meeting the domestic market demand, the equipment is also exported to the Americas, Europe, Asia and Africa and other countries and regions. The pursuit of excellence and respect is the business philosophy and the highest guiding principle of the company's operation and management.

Our business goal is to rely on our technology to provide customers with excellent products and services. We will promote core competitiveness, create high performance, and build into the world's top brand in the field of automation and control.
