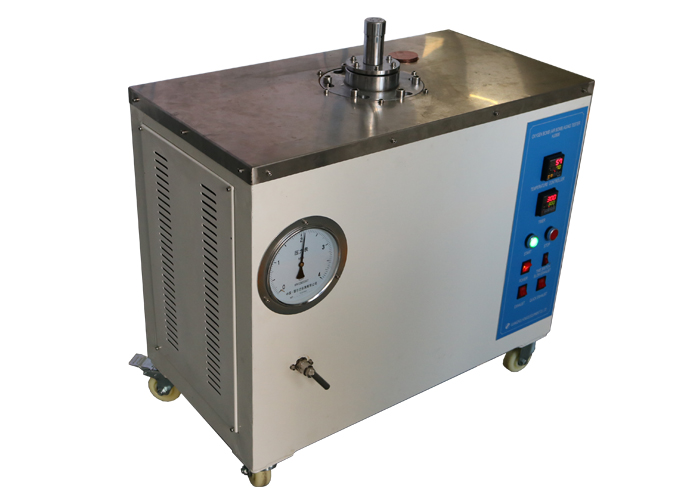

    4000cm3 0.55MPa IEC Test Equipment Ageing In Air Oxygen Bomb

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HJ0606
    Certification : Third party calibration certificate/ CE(cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 10 set per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    4000cm3 0.55MPa IEC Test Equipment Ageing In Air Oxygen Bomb

    IEC Test Equipment Ageing In An Air Bomb/Oxygen Bomb 0.55MPa Test Pressure


    Standard:

    IEC 60811-11-2 ‘Common test methods for insulating and sheathing materials of electric and optical cables — Part 1-2: General application — Thermal ageing methods’ clause 8.2 and 8.3 ;

    IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’ clause 22.32;


    Application:

    It is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber (plastic, leather) insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure and temperature. IEC Test Equipment


    Standard description:

    The bomb shall be filled with air, which shall be free from oil and moisture, to a pressure of 0.55 ± 0.02 MPa. The test pieces shall be kept in the bomb at the temperature and for the time specified for the material in the standard for the type of cable.


    The bomb shall be filled with commercial oxygen of not less than 97 % purity to a pressure of 2.1 ± 0.07 MPa. The test pieces shall be kept in the bomb at the temperature and for the time specified for the material in the standard for the type of cable.


    Parameter:

    Parameters NameParameter Data
    PowerAC 220V±10%, 50Hz
    Tank volume4000cm3
    Heater power2.4KW
    Maximum Working Pressure4MP/cm2
    Security Burst Pressure2.7-3.3MP/cm2
    Temperature Deviation±1℃. IEC Test Equipment
    Temperature self-control rangeRoom temperature 0-200℃
    Temperature controlDigital display automatic control
    Tank materialsStainless steel
