    Touch Screen IEC 60335-1 Cable Flexing Test Apparatus Figure 8

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HJ0608A
    Certification : Third party calibration certificate/ CE(cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 10 set per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Touch Screen IEC 60335-1 Cable Flexing Test Apparatus Figure 8

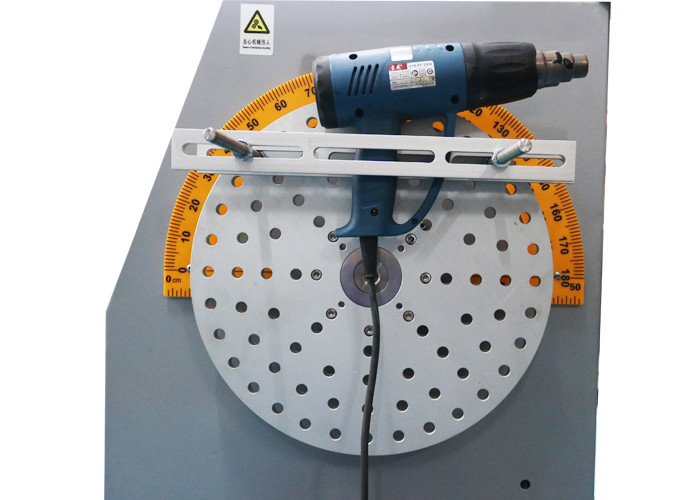

    IEC 60335-1 Test Equipment Cable Flexing Test Apparatus Figure 8


    Standard:

    IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements clause 25.14, figure 8.


    Standard description:

    Appliances provided with a supply cord and that are moved while in operation shall be constructed so that the supply cord is adequately protected against excessive flexing where it enters the appliance.

    NOTE 1 This does not apply to appliances with automatic cord reels that are tested by 22.1 6 instead.

    Compliance is checked by the following test that is carried out on an apparatus having an oscillating member as shown in Figure 8.

    The part of the appliance that includes the inlet opening is fixed to the oscillating member so that, when the supply cord is at the middle of its travel, the axis of the cord where it enters the cord guard or inlet is vertical and passes through the axis of oscillation. The major axis of the section of flat cords shall be parallel to the axis of oscillation.

    The cord is loaded so that the force applied is

    – 10 N, for cords having a nominal cross-sectional area exceeding 0,75 mm²;

    – 5 N, for other cords.

    The distance X, as shown in Figure 8, between the axis of oscillation and the point where the cord or cord guard enters the appliance, is adjusted so that when the oscillating member moves over its full range, the cord and load make the minimum lateral movement.

    The oscillating member is moved through an angle of 90° (45° on either side of the vertical), the number of flexings for type Z attachments being 20 000 and for other attachments 10000. The rate of flexing is 60 per minute.

    NOTE 2 A flexing is one movement of 90°.

    The cord and its associated parts are turned through an angle of 90° after half the number of flexings, unless a flat cord is fitted.

    During the test, the conductors are supplied at rated voltage and loaded with the rated current of the appliance. Current is not passed through the earthing conductor.

    IEC Test Equipment


    Parameter:

    Parameters / ModelHJ0608A
    Input PowerAC220V 50HZ
    Control MethodPLC control, touch screen operation
    StationOne. IEC Test Equipment
    Drive ModeElectrical
    Flexing Angle0-360°, preset on the touch screen
    Flexing Speed0-60cycles/min, can be preset
    Test Cycles0-999999, can be preset
    Loading Weight5N,10N
    Loading Voltage0-250V, can be regulated
    Sample judgmentJudge the conduction by current

    Touch Screen IEC 60335-1 Cable Flexing Test Apparatus Figure 8
