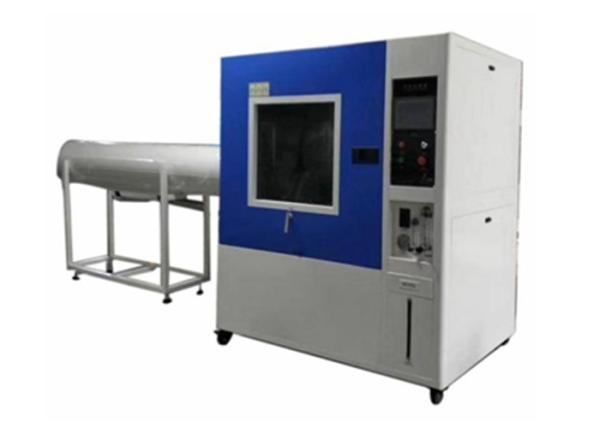

    IPX56 Rain Test Chamber IEC 60529 ISO20653 IEC60068 Auto Parts Testing

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : AM0022
    Certification : Calibration Certificate(cost additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 set /month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    IPX56 Rain Test Chamber IEC 60529 ISO20653 IEC60068 Auto Parts Testing

    IPX56 Rain test chamber IEC 60529 ISO20653 IEC60068 Auto Parts Test Equipment


    Products Introduction:

    The main function of this equipment is to test the performance of products during storage, transportation and use in rainy climate. It is widely used in electrical electronics, lamps, cabinets, electrical components, automobiles, motorcycles and parts under simulated rainy climate conditions. After testing, the performance of the product is determined after the verification, so that product design, improvement, verification and factory inspection.


    Meet a criterion:

    GB4208-2017, IEC 60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000 etc.


    Parameters:

    ModelAM0022-IPX56-216VAM0022-IPX56-512VAM0022-IPX56-1000V
    Inner box size mm (W * D * H)600×600×600800×800×8001000×1000×1000
    Vertical outer box size mm (W * D * H)920×660×36001200×860×36001400×1060×3800
    Horizontal outer box dimensions mm (W * D * H)3600×660×17503600×860×17503800×1060×1800
    Turntable diameter mm300400600
    Loadable weight kg20
    Number of sprinkler headsTwo; 1 IPX5 nozzle and 1 IPX6 nozzle
    The jet orifice diameter6.3 mmIPX5 (Grade)
    12.5 mmIPX6 (Grade)
    Water jet flow12.5 ± 0.625 (L/min) IPX5 (Grade)
    100 ± 5 (L/min) IPX6 (Grade)
    Pipe diameterFour minutes, one inch hose each
    Water spray pressure30~100 kPa (by flow adjustment)
    Rotary speed1~3 R/min
    Water spray test timeAt least 3min or more time (be set)
    Preset test time1S~9999H59M59S is arbitrarily adjustable
    Internal box materialSUS304 stainless steel
    Shell materialSUS304 stainless steel sheet metal or cold tie sheet metal paint
    Water circulation systemEnsure the recycling of water sources
    Control systemIndependent Developed touch screen control system (Teelong)
    Product mixconsists of test table, storage tank, control box, product dehydration buffer, turntable and spray system
    Electrical control partsChoose French Schneider, Omron, Taiwan ANV, Siemens and other international famous brands
    Equipment use conditionsPower supply: 380V; Frequency: 50HZ; power: 3KW
    Ambient conditionTemperature is 5℃ ~40℃; the relative temperature is 85%RH
