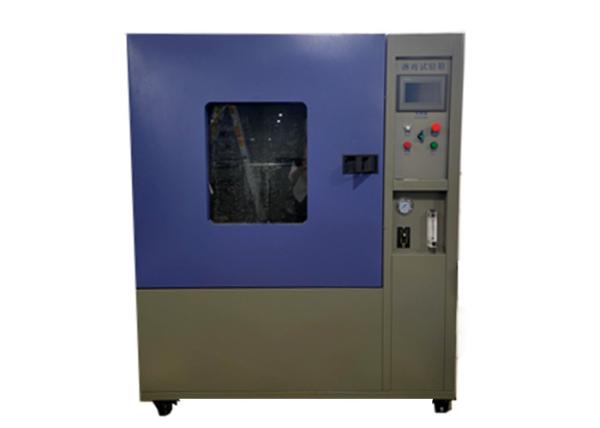

    IEC 60529 ISO 20653 Auto Parts Test Equipment IPX 34 Rain Test Chamber

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : AM0021
    Certification : Calibration Certificate(cost additional)
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 set /month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    IEC 60529 ISO 20653 Auto Parts Test Equipment IPX 34 Rain Test Chamber

    IP X 34 Rain test chamber IEC 60529 ISO20653 IEC60068 Auto Parts Test Equipment


    Products Introduction:

    This rain test box is an equipment for the protection grade test of electrical equipment for shell protection.It is mainly used to assess and determine whether the shells and seals of various electrical appliances, electrical products and various lighting fixtures can ensure the good working performance of the equipment and components after the water test or during the test.It is also an essential testing equipment for scientific research institutions and quality testing institutions.

    widely used in lamps, electrician and electronics, automobile, motorcycle, home appliances, electromechanical and other industries.


    Meet a criterion:

    GB4208-2017, IEC 60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000 etc.


    Parameters:

    modelAM0021-IPX34-225AM0021-IPX34-500AM0021-IPX34-1000AM0021-IPX34-1400
    Internal Box Size W * D * H (mm)600×600×600800×800×8001000×1000×10001400×1400×1400
    Outer box dimensions W * D * H (mm)900×1080×16501100×1480×17501200×1500×19501900×1600×2350
    Pendulum radius (mm)200300400600
    Turntable diameter (mm)300400500500
    Power / power220V/3KW220V/3KW220V/3KW220V/4KW
    Loadable weight (kg)20
    Adjustable height (mm)100

    qualification

    Sample frame speed1 ~3r/min (Adjustable)
    Diameter of water spraying hole0.4mm
    Radial spacing of water spraying hole50mm
    Water spraying hole flow0.07 L/min +5%
    Rain water pressure80~150Kpa
    Range of spray pipe swing Angle120 °, 320 ° (near)
    Spray mouth clip Angle120°(IPX3),180°(IPX4)
    Swing Angle120°(IPX3),320°(IPX4)
    Pendulum swing controlMaximum ± of 180 ° (near)
    Water spraying pipe swing speedIPX3 15 times / min; IPX4 5 times / min
    Preset test time1 S ~ 9999 The H59M59S is arbitrarily adjustable
    Internal box materialS US304 stainless steel
    Outer box materialS US304 stainless steel or cold tie plate paint
    Control systemSiemens touchscreen control system
    Ambient conditionTemperature 5℃ ~40℃ and relative temperature 85%RH
    Safety protection devicePower overload / short circuit protection, ground protection, water shortage protection, alarm sound warning
