Brand Name : | HeJin |
Model Number : | IN-2 |
Certification : | Third party calibration certificate/ CE(cost additional) |
Price : | Negotiatable |
Payment Terms : | T/T, L/C |
Supply Ability : | 10 set per month |
Delivery Time : | 30 days |

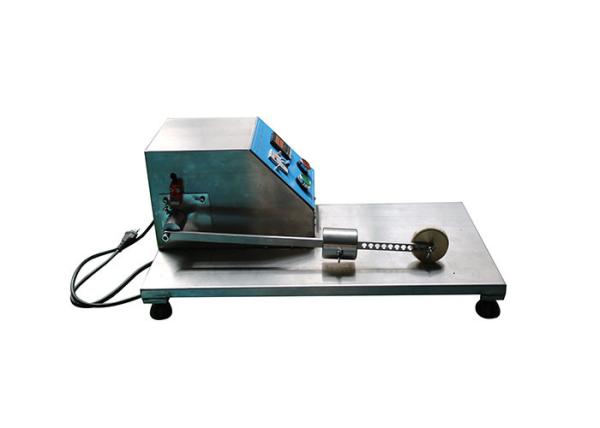

IEC Test Equipment Label Marking Abrasion Test Machine With 48rpm Test Rate
Standard:
IEC60730-1 Automatic electrical controls - Part 1: General requirements figure 8.
Feature:
Test times can be set from 1 to 999999 (default as 12 times), test rate 48 rpm. It is a easy operated professional equipment.used for testing the controller marking durability performance. IEC Test Equipment
Parameters:
Equipment | Markings durability tester |
Test station | 1 station. IEC Test Equipment |
Test stroke | 20mm |
Test rate | 48rpm |
Test times | 1~999999, default as 12times |
Sliding weight | 500g. Strip weight 250g, with weight 750g |
Brass washer | Φ60*2.5mm |
Friction wheel | Φ65*7.5mm |
Power supply | 220VAC 50Hz |
Standard | IEC 60730-1 Figure 8, Annex A |
![]() |
