    IEC60065 90° Angle Figure 4 Test Hook Probe

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HT-I18
    Certification : calibration certificate (cost additional)
    Price : Negotiatable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets / per month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    IEC60065 90° Angle Figure 4 Test Hook Probe

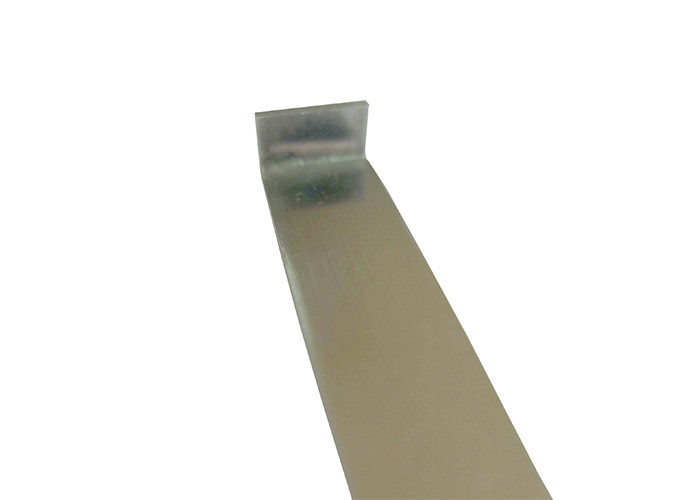

    IEC60065 Figure 4 Test Finger Probe Stainless Steel Test hook With 90° angle


    Standard:

    IEC60065-1 ‘Audio, video and similar electronic apparatus - Safety requirements’ figure 4.


    Application:

    It is used to test the enclosure mechanical strength of audio,video and similar electronic apparatus.


    Test sample:

    Audio,video and similar electronic apparatus.Test Finger Probe


    Feature:

    It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force 20±2 N last for 10s. The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.


    Parameters:

    Name/ModelTest hook probe /HT-I18
    Probe length180±0.05
    Probe width8±0.15
    Hook length5±0.05
    Test hook thickness1±0.15
    Test hook angle90°
    MaterialStainless steel

    Test Finger Probe
