Plug Socket Test Equipment Device for Testing Non-solid Pins for IEC60884-1 Figure 14 With 100N Weight

Standard:

IEC 60884-1 ‘Plugs and socket-outlets for household and similar purposes –Part 1: General requirements’ clause 14.2, figure 14

Application:

Pins of portable accessories shall have adequate mechanical strength. This device is use to test the mechanical strength of Pins of portable accessories. Plug Socket Test Equipment

Test sample:

Non-solid pins

Feature:

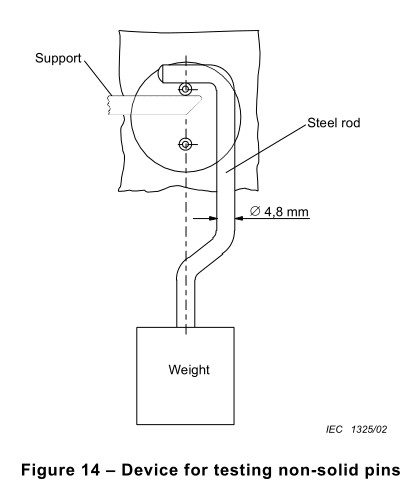

A force of 100 N is exerted on the pin, which is supported as shown in figure 14, for 1 min in a direction perpendicular to the axis of the pin, by means of a steel rod having a diameter of 4.8 mm, the axis of which is also perpendicular to the axis of the pin.

Parameters:
