Plug Socket Test Equipment 3mm Cylindrical Steel Rod With SUS304

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 24.11

Standard description:

Barriers, between the space intended for the suspension means fixed to the mounting surface and the live parts, likely to be subjected to mechanical strain when the portable socket-outlet is suspended on a mounting surface, are tested as follows.

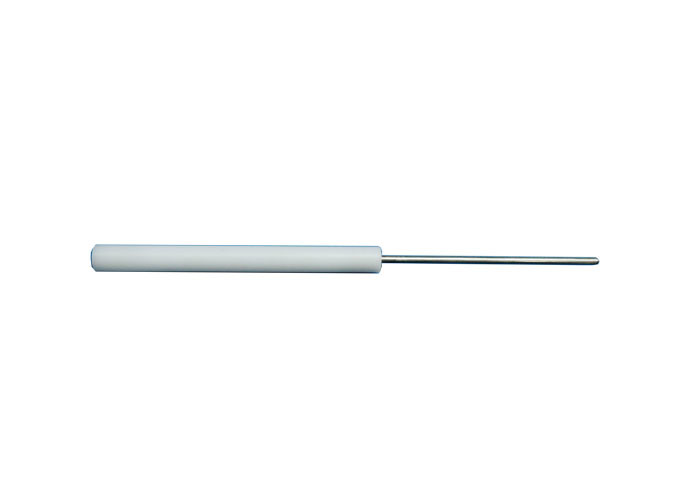

A cylindrical steel rod, having a diameter of 3 mm and a hemispherical end with a radius of 1.5 mm, is pushed perpendicular to the supporting mounting surface, in the most unfavourable position, for 10 s against the barrier, the force being equal to 1.5 times the maximum plug withdrawal force (as specified in 22.2, table 16).

Application:

This device is use to test mechanical strain ability of portable socket-outlet

Test sample:

Portable socket-outlet

Parameters:
