Plug Socket Test Equipment Compression Test Apparatus For Plugs

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 10.1, 24.5 and figure 8

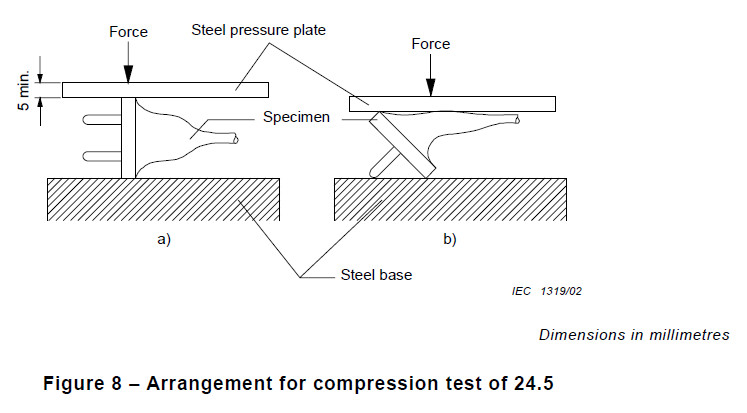

Each specimen of plug or portable socket-outlet is then pressed between two flat surfaces with a force of 150 N for 5 min, as shown in figure 8. The specimen is checked 15 min after removal from the test apparatus, and shall not show such deformation as it would result in undue alteration of those dimensions shown in the relevant standard sheets which ensure safety.

Application:

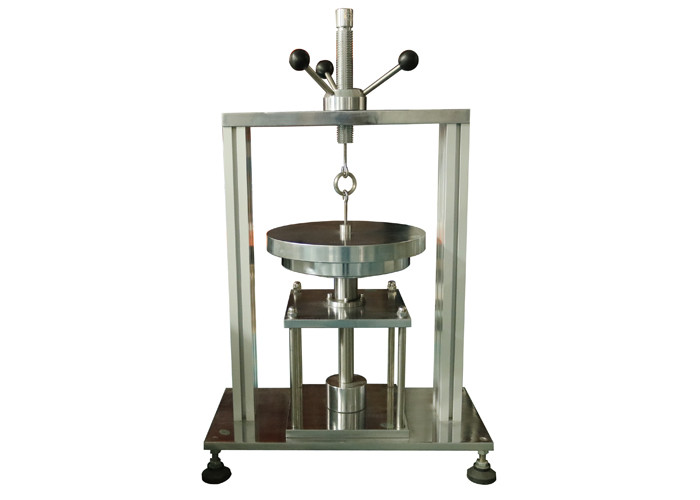

This device is use for testing the compression resistance performance of plug, check whether the mechanical strength of plug comply with standard requirements. Plug Socket Test Equipment

Test sample:

Plugs. Plug Socket Test Equipment

Feature:

This device applying compression force 300N by weights. The temperature of the pressure plate, of the base and of the specimens being 23±2℃, compress the plug in two position show as figure 8a) and 8b), each position for 1min.
