    Ф6.3mm Ф12.5mm SUS304 IP Test Equipment Nozzle

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HH0804
    Certification : calibration certificate (cost additional)
    Price : Negotiatable
    Supply Ability : 20 set per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

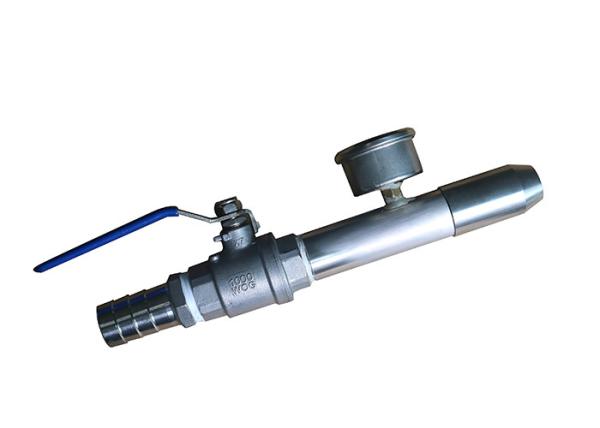

    Ф6.3mm Ф12.5mm SUS304 IP Test Equipment Nozzle

    Ingress Protection Test Equipment Nozzle for Protection Against High-velocity Water


    Standard:

    IEC60529 degree of protection provided by enclosures (IP Code), Figure 6 – Test device to verify protection against water jets (hose nozzle);

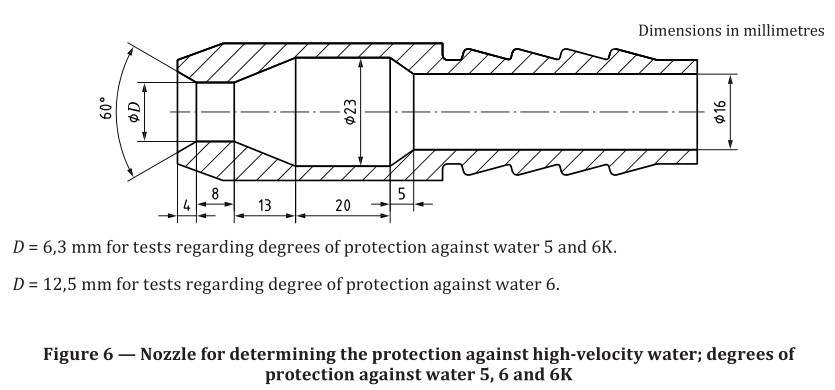

    ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, Figure 6 — Nozzle for determining the protection against high-velocity water; degrees of protection against water 5, 6 and 6K


    Application:

    These handheld devices perform IPX5 and IPX6 testing. Pressure meter was equipped to monitor water flow accurately.

    6.3mm Jet Nozzle for IPX5 test; 12.5mm Jet Nozzle for IPX6 test. Ingress Protection Test Equipment


    Feature:

    Jet Nozzle IPX 5/6 is designed to perform tests in large and small-scale products. It is a great option when a portable tester is necessary. Jet Nozzle IPX 5/6 comes with two nozzles (6.3mm for IPX5 and 12.5mm for IPX6) Jet Nozzle IPX 5/6 meets the testing needs of industry standards such as IEC 60529 but not only.


    Parameter:

    ItemIPX5IPX6
    The nozzle diameterФ6.3mmФ12.5mm
    Water flow12.5 l/min ± 5 %, Flow meter is adjustable100 l/min ± 5 %, Flow meter is adjustable
    Distance from nozzle to enclosure surface2.5-3m. Ingress Protection Test Equipment
    Testing timeMinimum test duration: 3 min
    Pressure gauge0-0.25MPa
    Site requirementsDedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation
    Water supply

    Water flow rate > 12.5L/min±5% clean water without inclusion.

    It can be achieved by the stainless steel water tank and pressurized equipment

    Water flow rate >100L/min±5% clean water without inclusion.

    It can be achieved by the stainless steel water tank and pressurized equipment
