| 1. Drip box for IPX1 and IPX2 test |
| Drip test area | 1000×600mm, customizable
|
| Drip height | 200mm, adjustable. Automatically sensed by infrared sensor, when
the needle is located at the highest point of the sample 200mm, the
drip box will automatically stop. |
| Dripping rate (Water flow) | 1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital
controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Testing time | 0-999.9min, can be preset |
| Installation method | Wall mounted or floor type |
2. Oscillating tubes for IPX3 and IPX4 test |
| Oscillating tubes radius | The standard configuration are R600, R800 and R1000, other radius
R200, R400, R1200, R1400, R1600mm are available, made of stainless steel
|
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3: 120°; IPX4: 180° |
| Pendulum angle | IPX3: 120°(±60°); IPX4: 350°(±175°) |
| Raining speed | IPX3: 4 s/time(2×120°); IPX4: 12 s/time(2×350°); |
| Water flow | 1-10L/min adjustable |
| Testing time | 0.01S-99hours 59min, can be preset |
3. Spray nozzle for IPX3 and IPX4 test
|
| Spray nozzle parameters | External diameter: Ф102mm spherical diameter: SФ75.5mm 121 holes of Ф0.5mm; 1 hole at the centre 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield-Aluminum Spray nozzle-Brass |
| Water flow | 10L/min±5%, Flow meter is adjustable |
| Pressure gauge | 50-150Kpa, Range of pressure gauge 0-0.25Mpa |

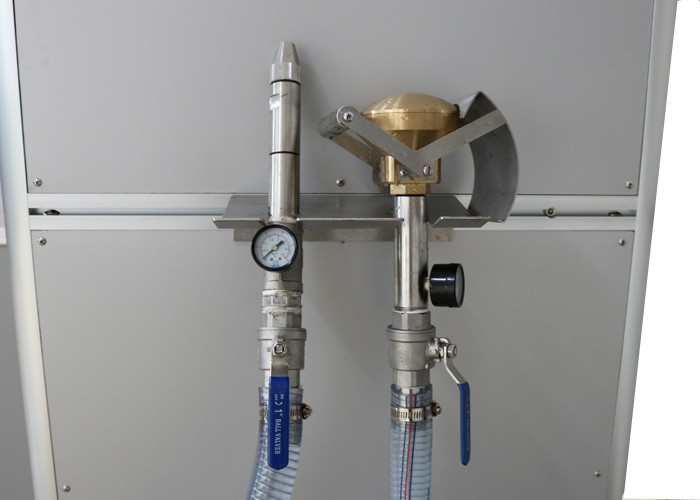

| 4. Nozzle jet for IPX5 and IPX6 test |
| Nozzle diameter | IPX5: Φ6.3mm; IPX6:Φ12.5mm |
| Water flow | IPX5: 12.5±0.625L/min; IPX6: 100±5L/min |
| The distance from jet nozzle to enclosure | 2.5-3m |
| 5. Turntable |
| Diameter | Φ600mm, Φ800mm and Φ1000mm are available, |
| Rotation Speed | 1r/min |
| Tiltable angle | 15° |
| Test angle of rotation | 90° , continuous rotation |
| Bearing Capacity | ≤150kg |
6. Water supply (also for IPX7 immersion) and electrical control
cabinet
|
| Applicable | (a) Water supply for IPX1~IPX6 waterproof test (b) IPX7 water immersion test (c) Water storage for IPX8 water tightness test (d) Automatic control for the whole waterproof equipment |
| Water storage tank | It is applicable to water storage of IPX5~IPX6 strong water spray
test, water injection of IPX8, IPX7 immersion Volume:1000L Dimension: L1000mmXW1000mmXH1000mm Observation window: toughened glass window Observation window dimension: W200mmXH1250mm Depth gauge: stainless steel Depth gauge height: 1300mm, accuracy 1mm Liquid level control: float switch + overflow pipe |
| Control Cabinet: | Flow detection: flow signal feedback through electronic flowmeter Flow setting: set on touch screen Temperature detection: PID Controller: PLC Control Function: constant temperature water supply, constant flow
water supply, constant pressure water supply, and test time
control. Protection function: leakage protection, overload protection, short
circuit protection |
| IPX7 immersion automatic lift bracket | Lifting distance: 0~1250mm Bracket dimension: L1000mmXW1000mm Bracket load weight: 50Kg |
