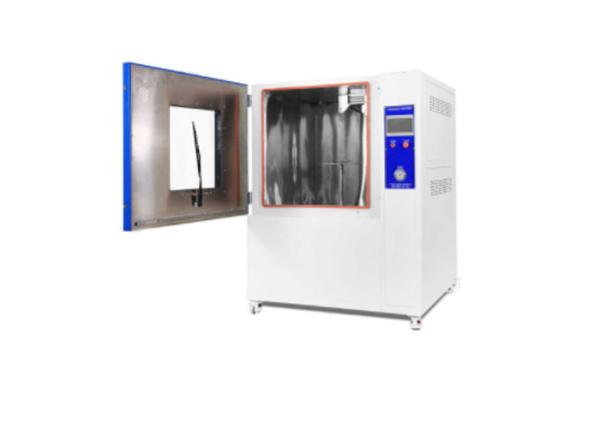

Auto Parts Test Equipment High-Pressure/Steam-Jet Cleaning IP9K
Test Chamber
Standard:
IEC60529 degree of protection provided by enclosures (IP Code) of
the IPX9K;
DIN40050-9 IP degrees of protection provided by enclosures for the
electrical equipment in road vehicles for protecting the electrical
equipment inside the enclosure against the effects of the ingress
of solid foreign objects, including dust (protection against
foreign objects),protecting the electrical equipment inside the
enclosure against the effects of the ingress of water (protection
against water);
ISO 20653-2013 Road vehicles — Degrees of protection (IP code) —
Protection of electrical equipment against foreign objects, water
and access, figure 7- Test set-up for determining the protection
against high-pressure/steam-jet cleaning; degree of protection
against water 9K;
Application:
It is used for the testing of IPX9K. Mainly used in Auto parts
field, Road vehicles , and Outdoor lighting field- Street lighting,
landscape lights, LED flood lights, Outdoor cabinet field-Outdoor
cabinet industry such as distribution box, battery box, battery
cabinet, etc. Auto Parts Test Equipment
Features:
1. The outer chamber of the equipment is made of high quality
stainless steel, and the inner chamber and the turntable are all
made of SUS304 stainless steel, which has high corrosion
resistance.
2. There are 4 nozzles for the equipment, the nozzle angle is 0°,
30°, 60°, 90°, and the distance is 100-200mm.
3. 7-inch color touch screen + Panasonic PLC system, the sample can
also be controlled by the system, and the remote control function
is added.
4. The testing machine test temperature is up to 80±5°C, and the
test water pressure can reach 8000~10000Kpa.
5. Inside water tank, cycling use of water.
Parameters:
| Model | HJ-IPX9K-1000L |
| Inner size | 1000 x1000x1000mm (customizable) |
| Outer size | 1200x980x1750mm |
| Number of nozzles | 4 |
| Location of nozzles | 0°, 30°, 60°, 90°, average distribution vertical direction |
| Distance from nozzle to sample | 100-200mm,manully adjustment |
| Water flow | 14-16L/min. Auto Parts Test Equipment |
| Water temperature | Room temperature or 80±5°C (the temperature deviation can be
agreement) |
| Spray pressure | 8000~10000Kpa |
| Rotary table | Diameter: Φ600mm. Load bearing≤50kg |
| Rotating speed of turntable | 4-10r/min (precisely adjustable) |
| Test time | 120s (Stay in each position for 30s) |
| Power | AC380V, 50Hz, 100w (customizable) |
| Protector | Leakage protection, short circuit protection, water shortage
protection |
