    Automobile Alternator 21000r/min Performance Test System HJAP03

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HJAP03
    Certification : Third party calibration certificate(cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 10 set per month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Automobile Alternator 21000r/min Performance Test System HJAP03

    Auto Parts Test Equipment Performance Test System Of Automobile Alternator


    Product information:

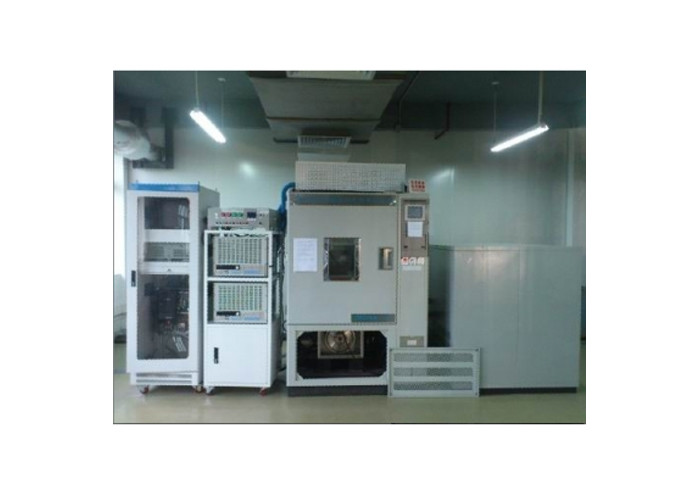

    The automobile alternator comprehensive performance test system (referred to as the one-to-two experiment platform) can drive two motors at the same time for testing. It is mainly used for the comprehensive test of high-speed impact (rapid shifting), high and low temperature and humidity durability of the alternator to simulate automobile AC Testing equipment for the working status of generators in various environments and conditions. Auto Parts Test Equipment

    The test bench is a mechatronics device. This system simulates the high and low temperature and humidity test environment to test the working conditions of various automobile generators. The high-power variable frequency motor simulates the car engine to drive the generator to generate electricity, and provides the maximum DC current to the car battery and load. In this process, computers and various intelligent equipment simulate various conditions, and real-time monitor and monitor the status of the generator, complete the high-speed impact and high-low temperature durability test and factory performance test tasks of various generator products.

    This system consists of an industrial-grade P4 computer through RS232 and RS485 communication ports with inverters, temperature control box controllers, load boxes, etc., and is supplemented by a hybrid control test bench with LabVIEW acquisition card (PCI-6221).


    Parameter:

    ItemMeasurement accuracyControl accuracyDisplay digitsControl and measurement range
    Rotating speed±0.5%±1.0%00000.0A0~21000r/min
    Voltage±0.5%00.00V0~60V
    Current±0.5%000.0A0~300A
    Torque±0.5%00.0 N·M0~24.5N·M
    Test temperature±2.0%000.0℃-70℃~180℃
    Test humidity±3% R.H00.0%R.H30-98%RH
    Temperature change rate15℃/min (2pcs 3.5KW generators work at the same time)

    Main function:

    Factory characteristic test:Characteristics of driving power and efficiency:

    Rapid thermal test

    Rapid cold test

    Auto Parts Test Equipment

    Load dump test;

    Durability test

    Temperature change durability test;

    High-speed acceleration test;

    High speed durability test;

    High temperature durability test.


    Software:

    The system software is using LabVIEW (Laboratory Virtual Instrument Engineering Workbench). Runs on Windows XP sp3 operating system. It can set the performance test (output characteristics, load dump, regulator and factory performance test), high-speed impact and durability test, and variable temperature and humidity test tasks of automobile alternator according to the needs of users. The software interface is friendly, and the operation is flexible and convenient.


    Automobile Alternator 21000r/min Performance Test System HJAP03
