    PLC Auto Parts Test Equipment Refrigerant Vacuum Filling Machine

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HJAP
    Certification : calibration certificate
    Price : Negotiatable
    Payment Terms : L/C, T/T
    Supply Ability : 5 set per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

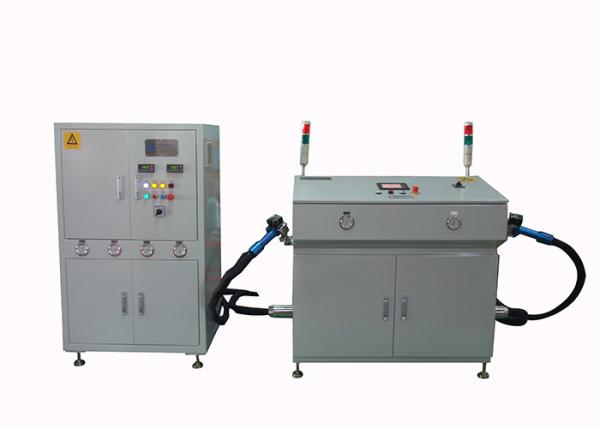

    PLC Auto Parts Test Equipment Refrigerant Vacuum Filling Machine

    Auto Parts Test Equipment Double System Automobile Refrigerant Vacuum Filling Machine


    Application:

    It can be used for filling the refrigerant (R22, R134a or R410a).


    Working process:

    After the filling gun is connected to the workpiece, press the start switch, and the filling machine will automatically vacuum the workpiece. When the workpiece reaches the set vacuum, the equipment will perform vacuum pressure-holding and leak detection on the workpiece; if the workpiece is found to be leaking, the equipment will automatically stop the charging procedure and alarm; if it is confirmed that the workpiece is not leaking, the equipment will automatically open the charging valve to fill the workpiece. When the charged refrigerant volume reaches the set value, the system will automatically close the charging valve. The filling completion signal lights up and the filling process is complete.


    Specification:

    Amount of injection200-99999g
    Inject refrigerantR22 or R410a
    System vacuum degree20Pa. Auto Parts Test Equipment
    Filling speed150g/s
    Filling accuracyFilling volume ≤500 g, ±1%; filling volume>500g, ±0.5%

    Basic composition:

    A. Refrigerant booster system

    Refrigerant pressurization and storage unit, 2 set

    PLC control unit, 1set

    B. Refrigerant vacuum charging system

    Vacuum unit, 1set

    Refrigerant charging and metering unit, 1set

    PLC control and touch screen operation unit, 1set


    Configuration:

    Electromagnetic valveDANFOSS, BURKERT
    Pressure sensorHUBA
    PLC and touch screenOMRON, PROFACE
    Vacuum pumpLEYBOLD
    Vacuum gaugeLEYBOLD
    Mass flowmeterRHEONIK
    Refrigerant booster pumpHASKEL
    Main electrical componentsFUJI, SCHNEIDER, MITSUBISH etc.

    PLC Auto Parts Test Equipment Refrigerant Vacuum Filling Machine
