    IEC60335-2-14 Household Appliance Test Equipment Probe With 125mm Diameter Stop Face

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HT-I02B
    Certification : Third party calibration certificate/ CE(cost additional)
    Price : Negotiatable
    Payment Terms : T/T, L/C
    Supply Ability : 20 set per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    IEC60335-2-14 Household Appliance Test Equipment Probe With 125mm Diameter Stop Face

    Household Appliance Test Equipment Test Probe With 125mm Diameter Stop Face


    Standard:

    IEC 60335-2-14 Household and similar electrical appliances – Safety – Part 2-14: Particular requirements for kitchen machines clause 20.2;

    IEC 61032 Protection of persons and equipment by enclosures – Probes for verification.


    Application:

    It is used to test stability and mechanical hazards for blenders, detachable parts. The test is carried out with a test probe similar to that of test probe B of IEC 61032 but having a circular stop face with a diameter of 125 mm instead of the non-circular face, the distance between the tip of the test finger and the stop face being 100 mm. Household Appliance Test Equipment

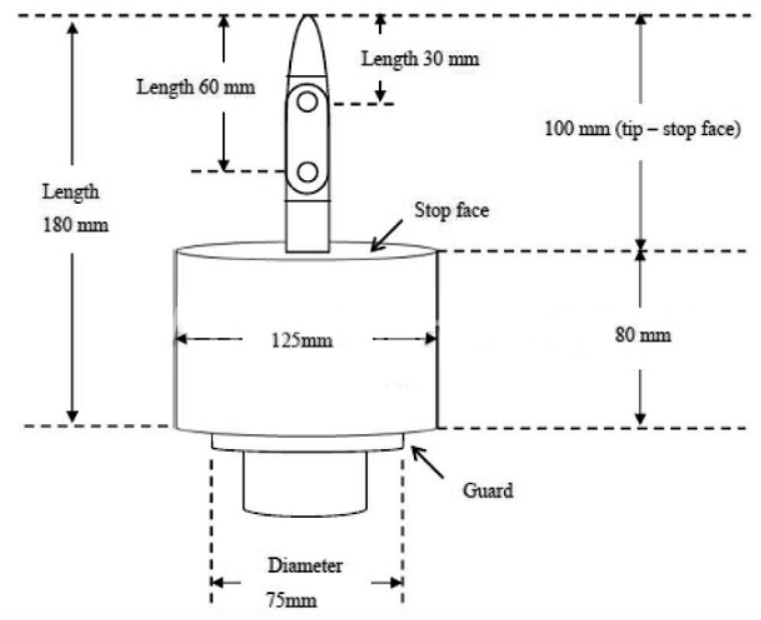

    Parameter:

    ModelHT-I02B
    NameLarge Baffle Test Finger
    Joint 1 length30±0.2
    Joint 2 length60±0.2
    Tip of the test finger to the stop face length100±0.2
    CylindricalR2±0.05
    SphericalR4±0.05
    Fingertip cutting bevel angle37o 0 -10′
    Fingertip taper14 o 0 -10′
    Test finger diameterФ12 0 -0.05
    Stop face diameterФ125±0.2
    Stop face thickness80
    Guard diameterФ75
    Applied standardIEC60335-2-14
