Brand Name : | HeJin |
Model Number : | HT-U02, HT-U03 |
Certification : | calibration certificate (cost additional) |
Price : | Negotiatable |
Payment Terms : | L/C, T/T |
Supply Ability : | 100 sets / per month |
Delivery Time : | 7 days |
UL 1278 Test Finger Probe Figure 8.1 (PA130A) and Figure 8.2 (PA140A)
Standard:
UL1278 Movable and Wall- or Ceiling-Hung Electric Room Heaters Figure 8.1 Probe for uninsulated live parts and Figure 8.2 Probe for film-coated wire.
Application:
It is used for the testing of coating lines of the enamel (i.e., transformers and inductors). And for the performance of the electrical equipment enclosure preventing electric shock.
Feature:
Nylon handle + probe, it is manufactured according to the standard figure. Test Finger Probe
Parameter:
Item | HT-U02 |
Finger length | 101.6mm |
Length 1 | 14.3mm |
Diameter 1 | 12.7mm |
Diameter 2 | 19.1mm |
Item | HT-U03 |
Finger length | 101.6mm |
Diameter 1 | 12.7mm |
Diameter 2 | 19.1mm |

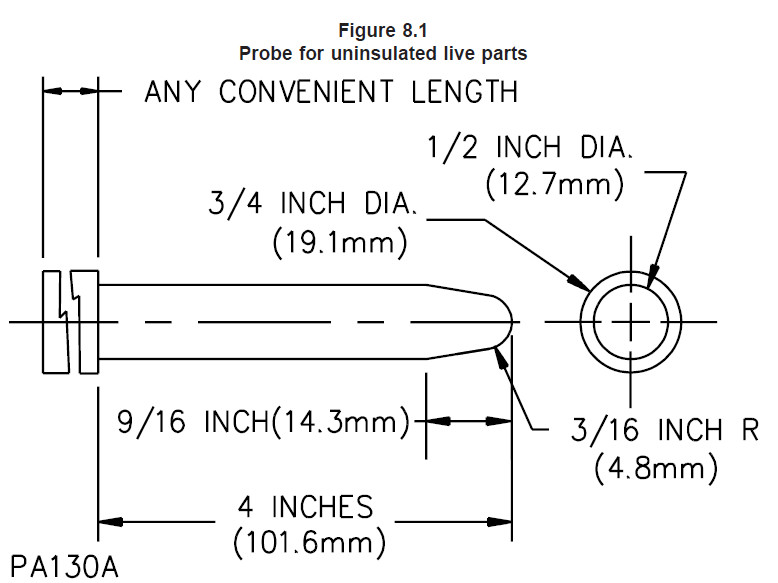

Figure 8.1 Probe for uninsulated live parts

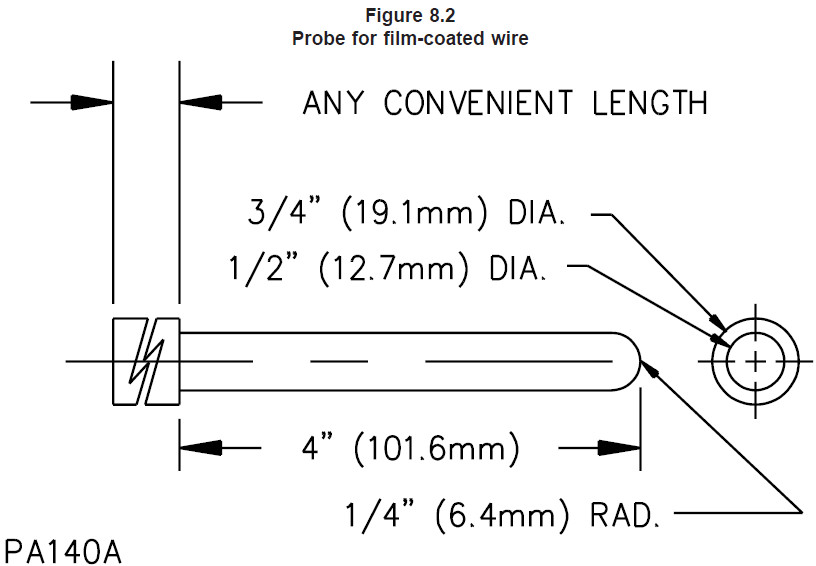

Figure 8.2 Probe for film-coated wire
![]() |
