Evaporator Condenser Vacuum Chamber Helium Detection Equipment
Accurately Protecting the Sealing Safety of Industrial Equipment
Product Introduction:
The evaporator condenser vacuum chamber helium detection equipment
is a high-end equipment designed for industrial equipment sealing
detection. It uses the high permeability of helium to create a
specific detection environment through a vacuum chamber, introduces
helium into or around the equipment being tested, and then captures
the leaking helium molecules through a highly sensitive sensor,
thereby accurately locating the leak point and measuring the leak
rate. This equipment is suitable for various types of evaporators
and condensers, and can play an important role in quality control
of new products in the production and manufacturing process, as
well as troubleshooting of old equipment during the equipment
maintenance stage.
Product Features:
The use of advanced sensing technology and precise measurement
systems can detect extremely small leaks, and the detection
accuracy reaches the industry-leading level. The optimized
detection process and rapid response mechanism greatly shorten the
detection time, improve production efficiency, and save valuable
time costs for enterprises. Equipped with a user-friendly operation
interface and an intelligent control system, operators only need
simple training to master it, which reduces the difficulty of
manual operation and reduces human errors. The use of high-quality
materials and advanced manufacturing processes has effectively
guaranteed the stability and durability of the equipment, providing
continuous support for your detection work. The detection
parameters and detection modes can be flexibly adjusted according
to different detection requirements. It is suitable for evaporators
and condensers of various specifications and types, and has strong
versatility and adaptability. During the detection process, the use
and emission of helium are strictly controlled, and environmentally
friendly treatment methods are adopted to ensure that the detection
process is safe and reliable and does not cause any pollution to
the environment.
International Standards and Certifications:
ISO 20485: Nondestructive Testing - Leak Detection Methods
ASTM E493-22: Vacuum Chamber Helium Mass Spectrometry Leak
Detection Standard
IEC 60068-2-17: Environmental Testing of Sealed Components
GB/T 12604.7: China National Leak Detection Standard
Technical Parameters:
Workpiece name | evaporator and condenser |
|---|
Workpiece volume | <5L |
|---|
Vacuum chamber inner size | 850*1200*350 |
|---|
Workpiece entry and exit method | manual |
|---|
Number of vacuum chambers | two |
|---|
Vacuum chamber inner volume | 357L |
|---|
Helium recovery rate | ≥98% |
|---|
Minimum detectable leak rate | 3.5*10-11Pa.m³/s |
|---|
Power supply | 380V ±10% 50Hz ±10% |
|---|
Customized service is available upon consultation with our staff!
Application scenarios:
HJ177 evaporator condenser vacuum chamber helium detection
equipment is widely used in many industries such as petrochemical,
refrigeration and air conditioning, electric power, food and
medicine. In the petrochemical industry, it can be used to test the
sealing of evaporators and condensers in chemical equipment to
prevent the leakage of toxic and harmful media and ensure
production safety; in the refrigeration and air conditioning
industry, it can test the evaporators and condensers in the air
conditioning system to ensure the refrigeration effect and system
stability; in the electric power industry, it can test the relevant
components in the power generation equipment to ensure the safety
and reliability of the power supply; in the food and medicine
industry, it is used to test the sealing of production equipment to
ensure that the production environment of food and medicine meets
the hygiene standards.

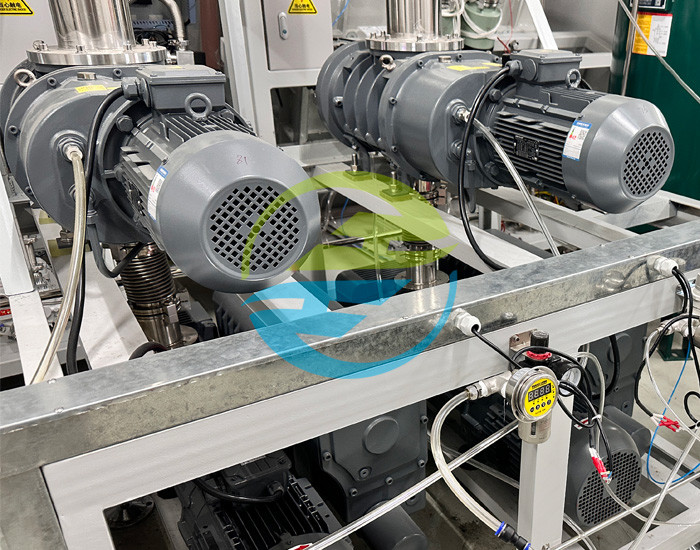

Detailed image:
After-sales commitment: not only delivery, but also growth
Regular return visits: arrange professional after-sales personnel
to visit customers regularly to understand the use of the equipment
and provide necessary technical support and maintenance suggestions
in a timely manner.
Free training: provide customers with free equipment operation and
maintenance training, so that operators can master the use of
equipment and daily maintenance skills to ensure the normal
operation of the equipment.
Quick repair: when the equipment fails, we promise to arrange
professional maintenance personnel to arrive at the site for repair
in the shortest time possible to restore the normal use of the
equipment as soon as possible.
