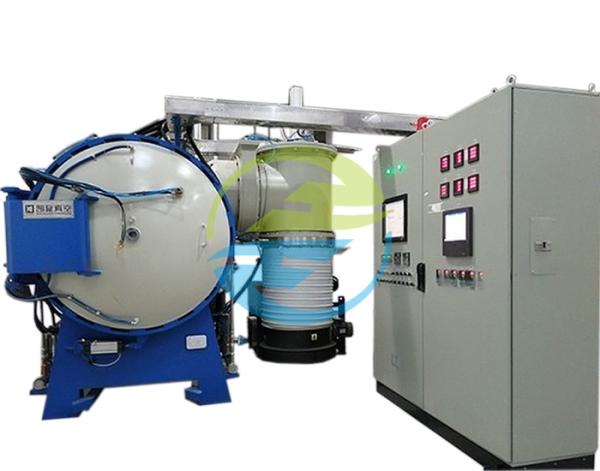

Vacuum High Pressure Gas Quenching Furnace
Application Scope:
The vacuum quenching furnace is primarily utilized for the vacuum
quenching treatment of metal materials, aiming to enhance their
hardness and fatigue strength. After vacuum quenching, the
workpiece is free from oxidation and decarburization, boasting
uniform hardness, minimal deformation, and a bright surface.
Product Features:
The air-cooling system is equipped with an efficient all-copper
heat exchanger and a fan with a special structure, ensuring
sufficient and powerful cooling capacity.
The heating chamber mainly utilizes graphite heating elements and
graphite felt for heat preservation. Two options are available for
graphite felt: full hard felt and a combination of hard felt and
soft felt. The graphite hard felt used in the configuration is made
at a graphitization temperature of 2000°C, ensuring its performance
and service life.
There are two furnace types: vertical and horizontal. Typically,
the heating chamber of the vertical furnace is circular, while the
heating chamber of the horizontal furnace is rectangular.
With the same size of the working area, it features the smallest
heat zone and shell, or the largest working area within the same
shell, effectively reducing the heating power consumption per unit
volume and the consumption of high-purity nitrogen.
The equipment layout adopts a modular design with a building
block-like construction, minimizing the occupied area, saving
installation space, and facilitating maintenance and repair.
| Furnace Type | Effective Chamber Dimensions (mm) | Rated Furnace Temperature (℃) | Loading Capacity (kg) | Total Power (kW) |
| Single Chamber Vertical | Ф1200×1200 | 1320 | 1000 | 320 |
| Ф1000×1000 | 1320 | 600 | 165 |
| Ф800×800 | 1320 | 300 | 135 |
| Single Chamber Horizontal | Ф1200×800×800 | 1320 | 1000 | 320 |
| Ф900×600×600 | 1320 | 500 | 165 |
| Ф750×550×500 | 1320 | 400 | 135 |
| Ф600×450×400 | 1320 | 250 | 95 |
| Dual Chamber Horizontal | Ф900×600×500 | 1320 | 400 | 135 |
| Ф750×500×500 | 1320 | 300 | 110 |
| Ф600×450×400 | 1320 | 200 | 70 |
