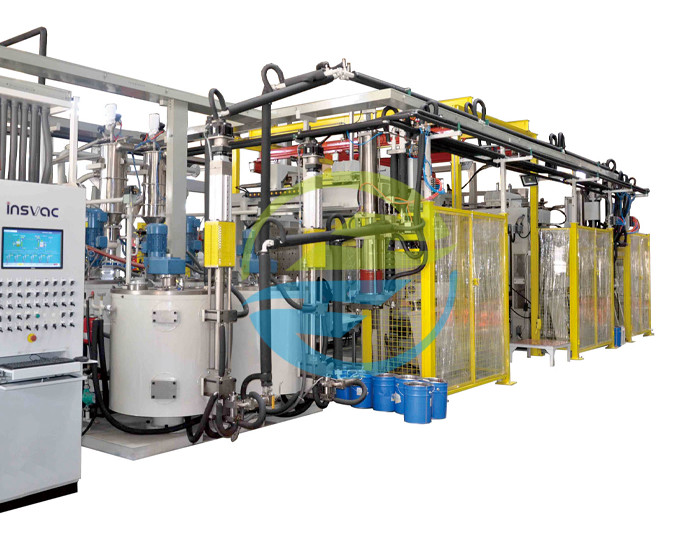

Transformer Static Mixing Vacuum Casting Equipment
Application Scope:
The static mixing vacuum casting equipment for transformers is
mainly used in the vacuum casting production of high-voltage
transformers, insulating parts, and other products.
Product Features:
The system is equipped with multiple safety interlock protection
measures;
The metering pump adopts proprietary technology, using
wear-resistant materials and servo control technology;
The static mixer is equipped with a flushing system;
The material valves are stable and reliable.
The core components such as vacuum pumps, vacuum sensors, servo
motors, pressure sensors, cylinders, pneumatic components,
electrical components, etc., are all internationally branded
products;
The automatic casting machine operates automatically during the
casting process;
The mixing and degassing tank adopts film degassing technology.
Product Specifications:
Dimensions (mm) | Ultimate vacuum | Leakage rate(Pa.L/S) | Operating pressure | Metering mode | Mixing mode | Casting mode |
| Φ1800×2000 | ≤50Pa (unload) | ≤100 | ≤0.4MPa or none | Auto-metering by metering pump | Static mixing | Auto-control by computer |
| Φ2000×2200 |
| Φ2200×2400 |
| Φ2400×3000 |
| Φ2500×3500 |
| Φ3000×3500 |
| Φ3200×3500 |
| Φ3200×4000 |
Our advantage service:
We have our own developing and designing team, which ensure our own
technological and innovative products for customers.
For any customers who have new idea about some products, just let
us know, we can according to your idea provide a unique design of
the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high
efficiency after-sale service for our product sold to everywhere of
the global.
About Us:
Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern
enterprise specialized in the research and development,
manufacturing, and sales of technology-intensive industrial
equipment. The company's leading products include vacuum helium
leak detection equipment, automatic brazing machines for gas/liquid
filling and recovery systems, lean production lines, and laboratory
testing equipment. These products are widely used in industries
such as automobiles, refrigeration, power, home appliances,
electronics, pharmaceuticals, plumbing, military, and others. Led
by Mr. Li Jianhe, an expert with profound knowledge in vacuum and
automated testing equipment, the company possesses its own core
technology and holds multiple invention and utility model patents.
Relying on a high-level talent team, the company has adopted a new
production model focused on development and design, assembly and
debugging, as well as after-sales service, and provides products
that are suitable for customers' specific usage and technical
requirements. Since its establishment, the company has introduced
various types of specialized equipment to the market, satisfying
domestic market demand while also exporting to countries and
regions in America, Europe, Asia, and Africa.
