AC230V 3 Stations Switch Plug Socket Endurance Tester for Plug
Socket Test Equipment
Product Introduction with Plug Socket Test Equipment:
This equipment is meticulously manufactured in accordance with
international standards such as IEC60884-1 and IEC61058-1,
specifically designed for switches, plugs, and sockets used in
household and similar electrical appliances. It thoroughly
evaluates the mechanical strength and electrical durability of
these electrical components by simulating long-term, repeated
rotation, insertion, and withdrawal operations. The device
precisely monitors the performance of contact points to ensure no
adhesion, abnormal closure, or disconnection occurs, while
simultaneously keeping a close eye on wear and tear to effectively
prevent potential safety hazards.
Application Range with Plug Socket Test Equipment:
This test equipment is specifically designed for durability testing
of button switches, plugs, and sockets to ensure product quality
and safety. By connecting an external load bank (including
resistive, inductive, and capacitive loads), it can further conduct
comprehensive load testing to simulate actual usage scenarios.
Users need to prepare the external load bank themselves to fully
utilize the complete test solution provided by this equipment and
meet diverse testing requirements.
Product Features with Plug Socket Test Equipment:
This testing machine features a robust aluminum alloy frame and
stainless steel sealing plate, driven by a high-precision cylinder,
ensuring stability and reliability during testing. Equipped with a
7-inch high-definition color touch screen, it offers intuitive and
user-friendly operation, combined with a PLC intelligent control
system, providing a humanized operation interface and detailed
digital display functions. Users can easily preset the test cycles,
conduction current duration, and test speed to meet diverse testing
requirements. The real-time current display function accurately
presents the conduction status of the sample. The machine is
equipped with three independent workstations, enhancing testing
efficiency. During the testing process, if continuous switching
occurs due to adhesion or malfunctions, the system will
automatically alert and record the corresponding test count. When
the test cycles reach the preset threshold, an alarm will also be
triggered, and the equipment will automatically shut down to ensure
operational safety.
Product Parameters with Plug Socket Test Equipment:
| Power | AC230V, 50Hz |
| Work station | 3 stations,Independent control |
| Operation interface | 7-inch touch screen |
| Drive mode | Cylinder |
| Control system | PLC control |
| Test times | 0～999999 times, can be preset |
| Conduction time | 0～99.9s, can be preset |
| Test stroke | 100mm |
| Test rate | 15 times/min,7.5 times/min,30 times/min |

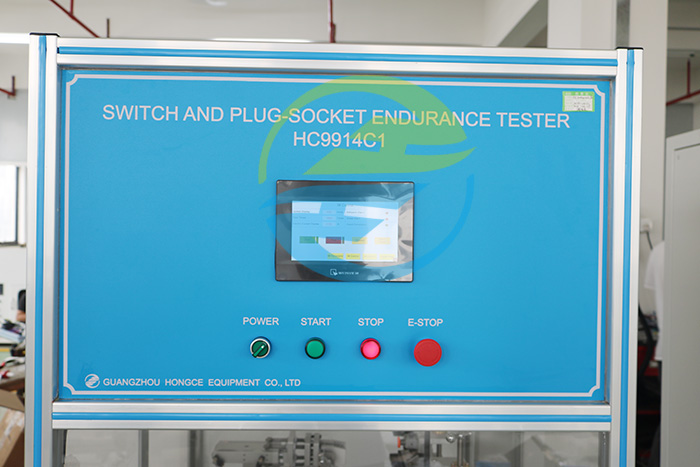

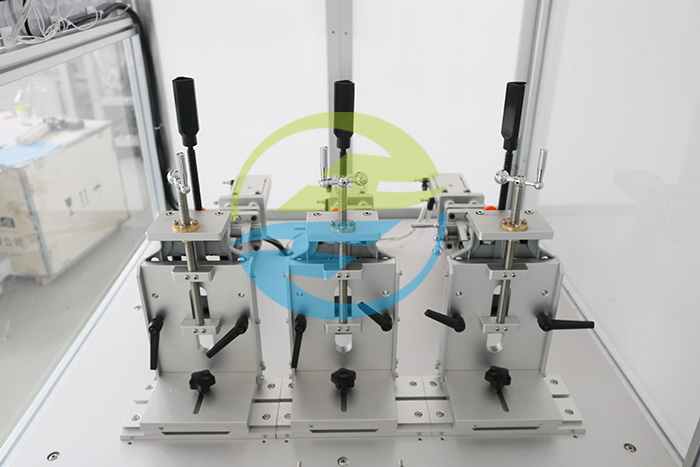

Product Image with Plug Socket Test Equipment:
