    Automatic Helium Leak Detector - 1.0E-9 Pa.m³/sec Alarm Rate For Leak Testing

    Ask Lasest Price
    Brand Name : HeJin
    Model Number : HJ147
    Certification : Calibration Certificate(Cost Additional)
    Price : Negotiatable
    Payment Terms : L/C, T/T
    Supply Ability : 10 Set per month
    Delivery Time : 90 Days
    • Product Details
    • Company Profile

    Automatic Helium Leak Detector - 1.0E-9 Pa.m³/sec Alarm Rate For Leak Testing

    Automatic Helium Leak Detector - 1.0E-9 Pa.m³/sec Alarm Rate for Leak Testing

    The Automatic Helium Leak Detector is a state-of-the-art device designed for accurately assessing the sealing performance of various objects. By injecting high-purity helium into the test object and leveraging helium's unique properties, it can precisely detect any leakage. Its high sensitivity, with an alarm leak rate of 1.0E-9 Pa.m³/sec, ensures that even the slightest leaks are identified. This detector is capable of simultaneously testing multiple stations, with 3 stations available and each station able to handle 2 parts at once. If only one part is present, the unused copper tube hole can be sealed with a plug.


    The key parameters of the Automatic Helium Leak Detector are as follows:

    ParameterDetails
    Part to be TestedRelay
    Leak Detection Stations3 stations, each capable of testing 2 parts simultaneously.

    If only one part is installed, the other hole for the part's copper tube is sealed with a plug.

    Trace Gas for Leak Detection100% Helium
    Leak Detection Pressure0.5 MPa
    Alarm Leak Rate1.0E-9 Pa.m³/sec
    Production Cycle Time30 seconds per 2 parts

    Installation of this equipment requires trained professionals. The main power supply demands a three-phase 5-wire 380VAC with 5KW power and an air switch installed at a height of ≥1.5M from the ground and within ≤2M from the equipment's main unit. For the gas supply, at least 1 bottle of 40 liters, 12MPa bottled helium with a 0.6MPa pressure reducing valve is needed, along with bottled high-purity nitrogen (≥99.999%) having a 0.2MPa pressure reducing valve and clean compressed air with a pressure of ≥0.55MPa and a 1/2″ ball valve. All gas supply interfaces should be within ≤1M from the machine's placement position. Additionally, an outdoor exhaust pipe with a diameter of ≥3/4″ and an interface within ≤1M from the machine is required.

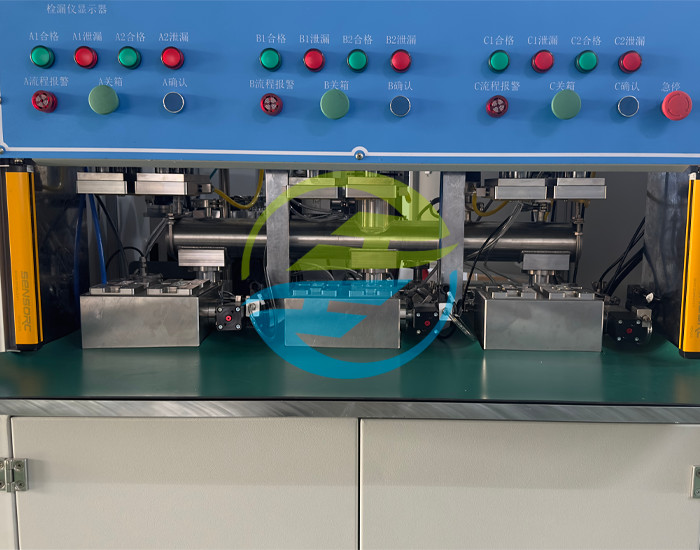

    Product Image with Leak Testing Equipment:

    Automatic Helium Leak Detector - 1.0E-9 Pa.m³/sec Alarm Rate For Leak TestingAutomatic Helium Leak Detector - 1.0E-9 Pa.m³/sec Alarm Rate For Leak TestingAutomatic Helium Leak Detector - 1.0E-9 Pa.m³/sec Alarm Rate For Leak Testing


    About us

    Our company, Guangzhou Hejin Automation Control Technology Co., Ltd., is a leading force in the field of technology-intensive industrial equipment. We have a dedicated R&D and design team that continuously develops innovative products. Our highly experienced workers offer reliable technical support. Our after-sales service team ensures fast and efficient assistance globally. Our product range, including this advanced leak detector, is widely used across multiple industries such as automobiles, electronics, and pharmaceuticals. Guided by an expert in the field, Mr. Li Jianhe, we possess core technology and numerous patents. Through our unique production model focused on development, assembly, and after-sales service, we provide customized solutions to meet the specific needs of our customers. Since our establishment, we have successfully introduced a variety of specialized equipment to both the domestic and international markets.
